Ⅰ Product introduction
Name: RFID Small industrial barcode printer ZJL200e
The RFID small industrial barcode printer ZJL200e, though small in size, has extraordinary capabilities. It is equipped with the uniquely developed and advanced RFID antenna technology. Solid and powerful, it can continuously and stably execute tasks from dawn to dusk, bringing about a more efficient and accurate printing solution, which helps you improve your operational efficiency within a short period. It is mainly applicable to industries such as financial services, warehousing and logistics, electronic tickets, luggage tags, product anti-counterfeiting, food safety traceability, manufacturing, retail supermarkets, and so on.
The RFID small industrial barcode printer ZJL200e, though small in size, has extraordinary capabilities. It is equipped with the uniquely developed and advanced RFID antenna technology. Solid and powerful, it can continuously and stably execute tasks from dawn to dusk, bringing about a more efficient and accurate printing solution, which helps you improve your operational efficiency within a short period. It is mainly applicable to industries such as financial services, warehousing and logistics, electronic tickets, luggage tags, product anti-counterfeiting, food safety traceability, manufacturing, retail supermarkets, and so on.
Ⅱ Product features
● Effective positioning, reading and writing of ultra-small tags with an inlay spacing of 12mm
With effective positioning, it can read and write tags with an inlay spacing of 12 millimeters. It is also currently the printer on the market that supports reading and writing of tags with the smallest inlay spacing.● Innovative antenna design: printing first, then reading and writing for verification, more accurate and reliable
It adopts an antenna design that prints the tag first and then reads and writes for verification. The detection rate of all defective tags ensures the accuracy of business management.
● One-click positioning of the tag antenna position, simple operation, high efficiency and convenience
The one-click tag antenna positioning and the function of printing the first tag make the operation simple, highly efficient and convenient, and reduce the usage cost to a lower level.
● 7×24-hour continuous printing, excellent performance in rapid heat dissipation
With the industrial-grade left-right body structure and the patented "convective heat dissipation design", it can continuously print for 7×24 hours and dissipate heat rapidly. From morning to night, it brings a more excellent printing experience.
Ⅲ Technical parameters
| Model | ZJL200e |
| Printing method | Thermal transfer printing |
| Resolution | 203dpi |
| Maximum printing speed | 6 ips (153mm/s) |
| Maximum printing width | 4.25″（108mm） |
| Maximum printing length | 315″ (8000mm) |
| Tag roll size | Width: Maximum 4.49″ (114mm), minimum0.98″ (25mm) Outer diameter: Maximum 6″ (152mm), Inner diameter: Minimum 1″ (25.4mm) |
| Ribbon size | Outer diameter: Maximum 2.75″(70mm); Inner diameter: Minimum 1″(25.4mm) Maximum width: 4.33″ (110mm), Maximum length: 984″ (300M) |
| RFID function | Integrated UHF reader/writer/encoder (EPC Class 1 Gen2/ISO 18000-6C) |
| Memory | 8 MB FLASH ROM，16 MB SDRAM |
| Tag thinckness | 0.08－0.20 mm (0.003″－0.008″), including the thickness of the backing paper |
| Paper detection method | Reflective (movable) / Transmissive |
| Font | It comes with five built - in dot - matrix fonts and a 24 - dot - matrix Chinese Song typeface, and supports downloading TrueType fonts. |
| Barcode | Code 39, Code 93, Code 128/subset A, B, C, Codabar, Interleave 2 of 5, One-dimensional barcodes such as UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.; Two-dimensional barcodes such as MaxiCode, PDF417, Data matrix, QR Code, etc. |
| Interface types | RS-232 serial port, 10/100M-bit Ethernet port, USB DEVICE interface, USB HOST interface, Centronics parallel port (optional) |
| Power adapter | Input: AC 100 ~ 240 V, 50/60 Hz Output: DC 24 V, 4.0 A |
| Weight | 3.5kgs |
| Body size | Width: 256 mm × Depth: 329 mm × Height: 200 mm |
| Operating environment | Humidity: 0 °C – 40 °C (32°F- +104°F); Relative humidity: 5% - 85% no condensation |
| Storage environment | Temperature: -30°C – 60°C (-22°F- +140°F); relative humidity: 5%-85% no condensation |
| Optional accessories | Paper peeling device, paper cutter, Centronics parallel port, external paper holder, external label rewinder, additional guide paper piece cap (the narrowest width for guiding paper is 8mm) |

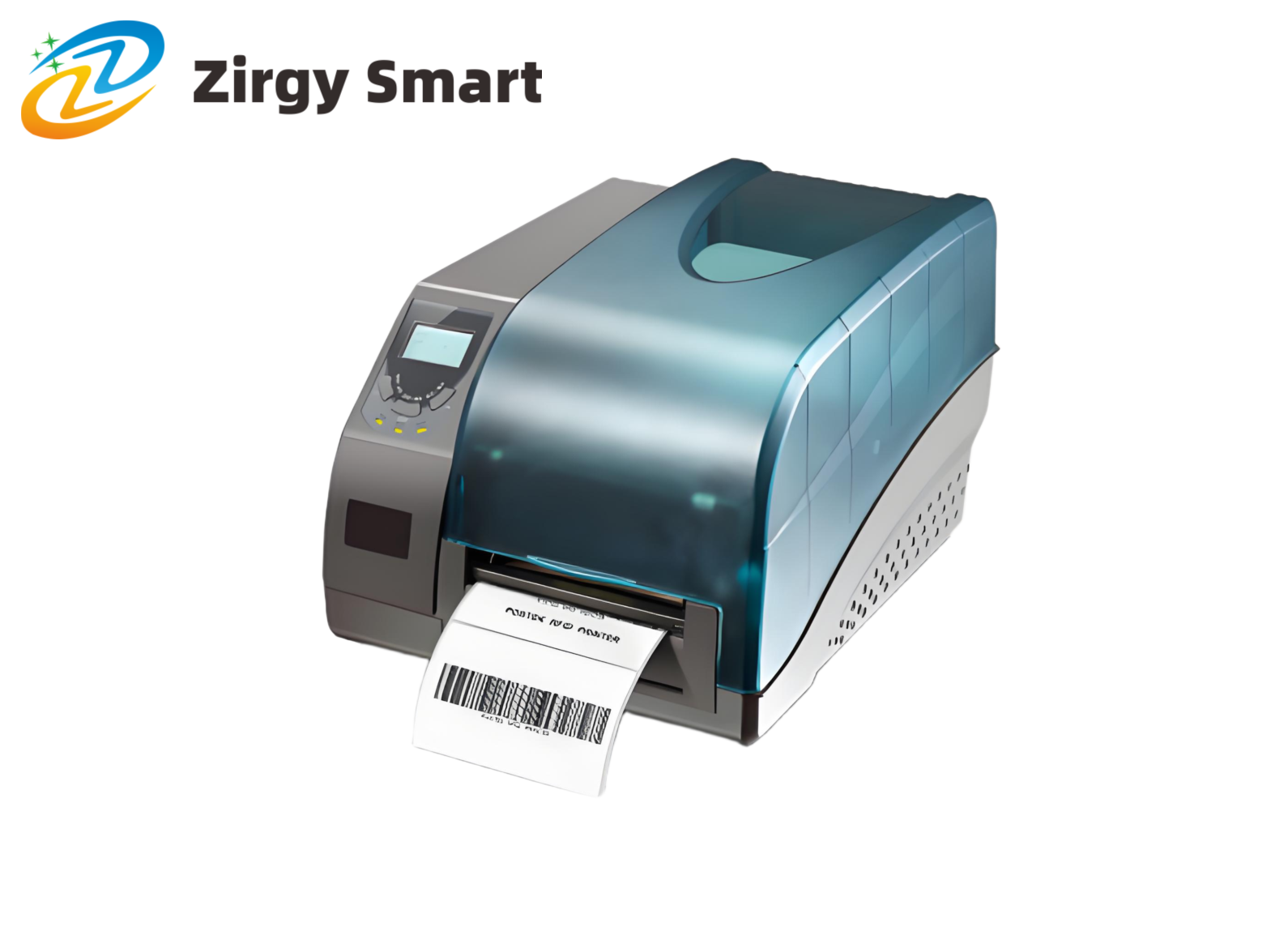

Ⅳ Product display
