Ⅰ Product introduction
Our company has developed and upgraded a high-performance UHF (Ultra High Frequency) intelligent handheld terminal. This product has the UHF reading and writing function, with higher sensitivity, enabling more accurate and faster RFID tag collection. It adopts the Android 12 operating system, is equipped with a built-in high-performance octa-core processor, and has a battery capacity of over 10,000mAh. It is widely applicable to fields such as asset management, clothing inventory taking, vehicle management, highway toll collection, warehouse management, financial management, fingerprint verification, etc.
Ⅱ Performance parameters
● Octa-core (standard configuration)
CPU:Cortex-A53 2.0 GHz octa-core
RAM:3GB +32GB
Expanded memory: MicroSD (TF) card can be expanded to 128 GB
Operating system: Android 12; support Soti MobiControl, SafeUEM, etc.
● Octa-core (high configuration)
CPU: Cortex-A53 2.0 GHz octa-core
RAM: 4GB +64GB
Expanded memory: MicroSD (TF) card can be expanded to 128 GB
Operating system: Android 12; support Soti MobiControl, SafeUEM, etc.
Ⅲ Data communication
● Fingerprint (optional configuration)
Fingerprint module: Capacitive USB pressing mode fingerprint module
Image dimensions: 256*360pixel; FBI PIV FAP 10 certifications
Image resolution: 508 dpi
International standard: Compliant with ISO19794-2.ISO19794-4,ANSI 378,ANSI 381 and WSQ international standard
Authoritative certifications: It has passed the certification of the Ministry of Public Security of China, the FBI PIV Mobile ID FAP 10 certification in the United States, and the STQC certification in India.
Collecting speed: Single-frame image collecting time is no higher than 0.25s.
● Octa-core
WLAN: Support IEEE802.11 a/b/g/n/ac protocol (2.4G/5G dual-frequency) , built-in antenna
WWAN: 2G: 900/1800 MHz
3G:WCDMA: B1/B8, CDMA2000 EVDO: BC0, TD-SCDMA: B34/B39
4G: B1/B3/B5/B8/B34/B38/B39/B40/B41
Bluetooth: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS
GNSS: integrated with GPS, GLONASS and Beidou; built-in antenna, support AGPS
Ⅳ Physical parameters
Overall dimensions: 179 mm x 80.0 mm x 17.2 mm
Overall weight: 654 g
Display screen: A 5.0-inch IPS FHD screen with a resoltuon of 1280*720/ A 5.72-inch screen with a resolution of 1440*720
Touch screen: Corning Gorilla Glass supports multi-touch and can be operated with gloves or wet hands.
Battery capacity: Chargeable lithium polymer battery with a capacity of 10000mAh
The standby time is more than 500 hours.
The operating time is more than 12 hours (depending on the usage circumstance and network environment)
The charging time is about 3-4 hours (by standard power supply adapter and data cable)
Expanded slots: 1 SIM card slot, 1 card slot either for a SIM card or a TF card, 1 PSAM card slot (optional configuration)
Communication interface: USB 2.0 Type-C, OTG,
Audio: 1 speaker, 2 microphones
Keyboard: 5 mian keys, 1 power button, 2 scanning buttons, 2 volume buttons
Sensors: Gravity sensors, proximity sensors
Ⅴ Development environment
SDK: Terminal software development kit
Development language: Java
Development kit: Eclipse / Android Studio
Ⅵ Usage environment
Operating temperature: -20 °C to 50 °C
Storage temperature: -40 °C to 70 °C
Environment humidity: 5% RH - 95% RH (no condensation)
Falling specification: In the range of operating temperature, each of 6 faces can withstand muliple falls to concret ground from 1.5 meters hegiht.
Rolling test: It can be rolled continuously for 1000 times at a height of 0.5 meters. After rolling with each of the six surfaces in contact, it can still operate stably, meeting the IEC rolling specifications.
Protection rating: The main unit has an IP65 rating, reaching IEC sealing standard.
Rlectrostatic protection: ±15 KV air discharge, ±6 KV contact discharge
Ⅶ Data collection
● Camera (Optional)
Optional camera: 5-megapixel front camera. Standard configuration: 13-megapixel color camera, supporting autofocus and flash.
● RFID Ultra High Frequency (UHF) (Optional)
Operating frequency (Customized frequency band as required within 860-960 MHz)
Chinese frequency: 920-925 MHz
American frequency: 902-928 MHz
European frequency: 865-868 MHz (ETSI EN 302 208)
Frequencies in other countries (Customizable)
Engine: Based on Impinj Indy E710
Protocol standard: EPC C1 GEN2 / ISO18000-6C
Antenna parameters: Linear polarized antenna (1.8dBi) / Circular polarized antenna (4dBi)
Power: 1 W (30dBm, supporting adjustment from +5 dBm to +30 dBm), and 2W (33dBm, applicable for Latin America, etc.) is optional.
Reading distance: > 15 meters (circular polarization, indoors); > 10 meters (circular polarization, in an open outdoor environment); > 15 meters (linear polarization, indoors); > 5 meters (linear polarization, in an open outdoor environment)
* Group reading rate: Up to 300 tags/s (circular polarization)
The reading distance and group reading rate are related to the actual environment.
● NFC (Optional): 13.56 MHz
● Low Frequency (Optional): 125K/134.2, FDX-B, HD-B
● Barcode collection (Optional)
1D scanning engine: Zebra: SE965; Honeywell: N4313
Supported 1D barcode types: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D scanning engine: Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
Supported 2D barcode types: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Ⅷ Accessories
Standard configuration: Adapter, data cable, anti-fall rope, screen protector, etc.
Optional configuration: Base, protective sleeve, handle, etc.

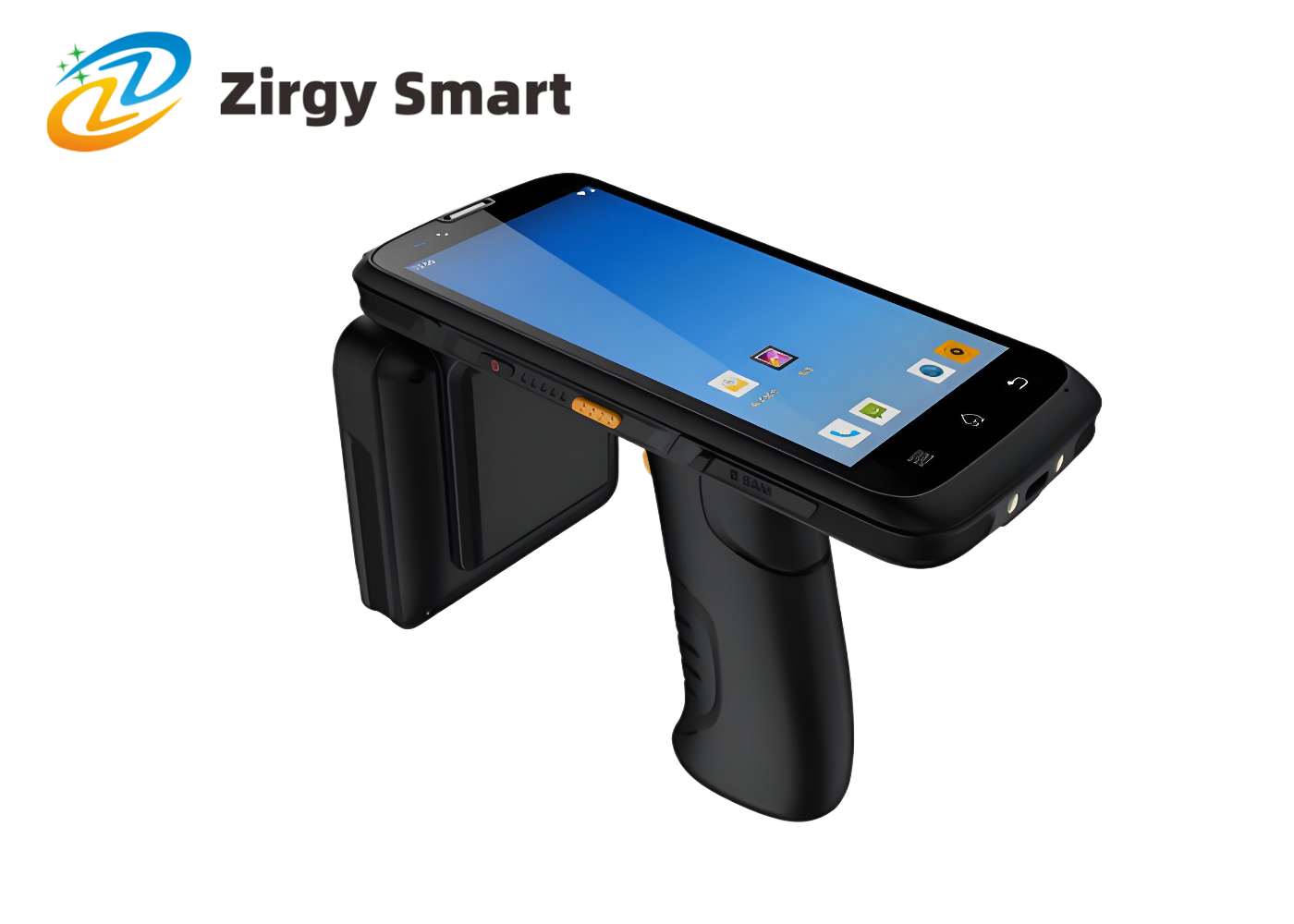

Ⅹ Product display
