Ⅰ Product introduction
Name: NFC handheld terminal ZJ5011
The NFC handheld terminal ZJ5011 is mainly applicable to industries such as asset management, medical device management, inventory of jewelry, warehousing management, clothing inventory, vehicle management, highway toll collection, financial management, logistics, etc.
Ⅱ Product features
● Compact, portable and stable in performance
The lower part of this machine is designed with a 19-key industrial keyboard and equipped with a 4.0-inch high-definition display screen. The whole machine is compact and portable. The resolution of 480*800 also brings a good screen experience. With the design of fan-shaped arcs at the corners, it not only maintains a comfortable grip but also takes into account the anti-fallability of the machine. It is widely applied to industries such as logistics, express delivery, and retail.
● High-speed octa-core processor and large internal storage
This machine adopts the Android 9.0 system and a high-speed octa-core processor solution, with four large cores of Cortex-A73 and four small cores of Cortex-A53. It is also equipped with a memory combination of 2+16GB (standard configuration) and 4+64GB (optional configuration), enabling smooth operation of multiple tasks and stronger performance.
● Enterprise-level quality and super long battery life
This machine reaches the IP65 three-proof level and can withstand a natural drop from a height of 1.5 meters. With a large-capacity battery of 4100mAh, it can work continuously for more than 12 hours. It can excellently meet the mobile work requirements in various scenarios and harsh environments.
The lower part of this machine is designed with a 19-key industrial keyboard and equipped with a 4.0-inch high-definition display screen. The whole machine is compact and portable. The resolution of 480*800 also brings a good screen experience. With the design of fan-shaped arcs at the corners, it not only maintains a comfortable grip but also takes into account the anti-fallability of the machine. It is widely applied to industries such as logistics, express delivery, and retail.
● High-speed octa-core processor and large internal storage
This machine adopts the Android 9.0 system and a high-speed octa-core processor solution, with four large cores of Cortex-A73 and four small cores of Cortex-A53. It is also equipped with a memory combination of 2+16GB (standard configuration) and 4+64GB (optional configuration), enabling smooth operation of multiple tasks and stronger performance.
● Enterprise-level quality and super long battery life
This machine reaches the IP65 three-proof level and can withstand a natural drop from a height of 1.5 meters. With a large-capacity battery of 4100mAh, it can work continuously for more than 12 hours. It can excellently meet the mobile work requirements in various scenarios and harsh environments.
Ⅲ Basic parameters
| Product model | ZJ5011 |
| Overall dimensions | 164×71×23±2mm |
| Overall weight | 370 grams |
| Display screen | 4.0-inch high-definition screen with a resolution of 480*800 |
| Touch screen | Corning Gorilla Glass 3, industrial-grade multi-touch capacitive screen |
| Expansion socket | 1个sim card socket(MUP-C785), 1个TF card socket 1个PSAM card socket (MUP-C785) |
| Communication interface | 1 Type-C interface |
| Indicator light | Network indicator light, charging indicator light |
| Press buttons | Side buttons and numeric buttons |
| Torch | Low-power LED light for emergency use |
| GPS | GPS/Beidou navigation are optional error range: ±5m |
Ⅳ Performance parameters
| CPU | MT 6771 octa-core 64-bit processor, with four large cores of A73 and four small cores of A53, and the main frequency is 2.0Ghz. |
| Memory capacity | RAM：2GB ROM：16GB (standard configuration) RAM：4GB ROM：64GB (optional configuration) |
| Expansion memory | Support 256GB T card |
| Operating system | Android 9.0 |
| Data communication | 4G:TD-LTE Band38/39/40/41 FDD-LTE Band 1,2,3,4,7,17,20 3G:WCDMA( 850/1900/2100MHz); 2G:GSM/GPRS/Edge (850/900/1800/1900MHz) |
| WIFI | Dual-band of 2.4G/5G, supporting the WiFi roaming function, conforming to IEEE802.11a/b/g/n. |
| Bluetooth | Compiant with Bluetooth 4.2 |
Ⅴ Operating environment
| Operating temperature | -20℃～50℃ |
| Operating temperature | -20℃～70℃ |
| Relative humidity | 5%～95% no condensation |
| Protection rating | Main unit IP65 |
Ⅵ Battery performance
| Battery capacity | 4100mAh polymer lithium battery with a voltage of 3.8V |
| Standby time | Dual-band of 2.4G/5G, supporting the Wi-Fi roaming function and compliant with IEEE802.11a/b/g/n. It can stand by for 360 hours when functions such as wireless communication are turned off. |
| Charging time | Less than 2.5 hours |
| Operating time | For more than 12 hours (after a full charge) |
Ⅶ Data collection
| Camera (optional configuration) | |
| Front-facing camera | Front-facing 500 pixels camera |
| Rear-facing camera | Rear-facing 800 pixels camera with flashlight and autofocus function |
| NFC function (optional function) | |
| Operating frequency | 13.56MHz |
| Protocol standard | ISO14443A/B ISO15693， NFC-IP1,NFC-IP2, etc. |
| Tag standard | M1card (S50，S70) , CPU card, NFC tag, etc. |
| Reading distance | 5-10cm |
| Barcode collection (optional configuration) | |
| One-dimensional barcode | |
| One-dimensional laser scanning module | Honeywell N431X/others |
| Supported one-dimensional barcode type | Code 39, Code 93, Code128, Codebar, EAN- 13, EAN- 8, UPC-A, UPC- E, ITF 14, UCC/EAN- 128, ITF25, Matrix 25, EAN-128, ISBN, etc. |
| Two dimensional barcode | |
| Two-dimensional scanning engine | Zebra SE4710/ ME5600/others |
| Supported types of two dimensional code | PDF417, MicroPDF417,Composite, RSS, TLC-39, Datamatrix, QR code, Micro, QR code, Aztec, MaxiCode, Postal Codes,US PostNet,US Planet, UK Postal, Australian Postal,Japan Postal, Dutch Postal, etc. |
| Accessories | |
| Standard configuration | 1 lithium-ion battery, 1 charging adapter, 1 Type-C charging cable |
| Optional configuration | Bag, charging base |
Note: The product parameters are for reference only. If there is any update, no further notice will be given.

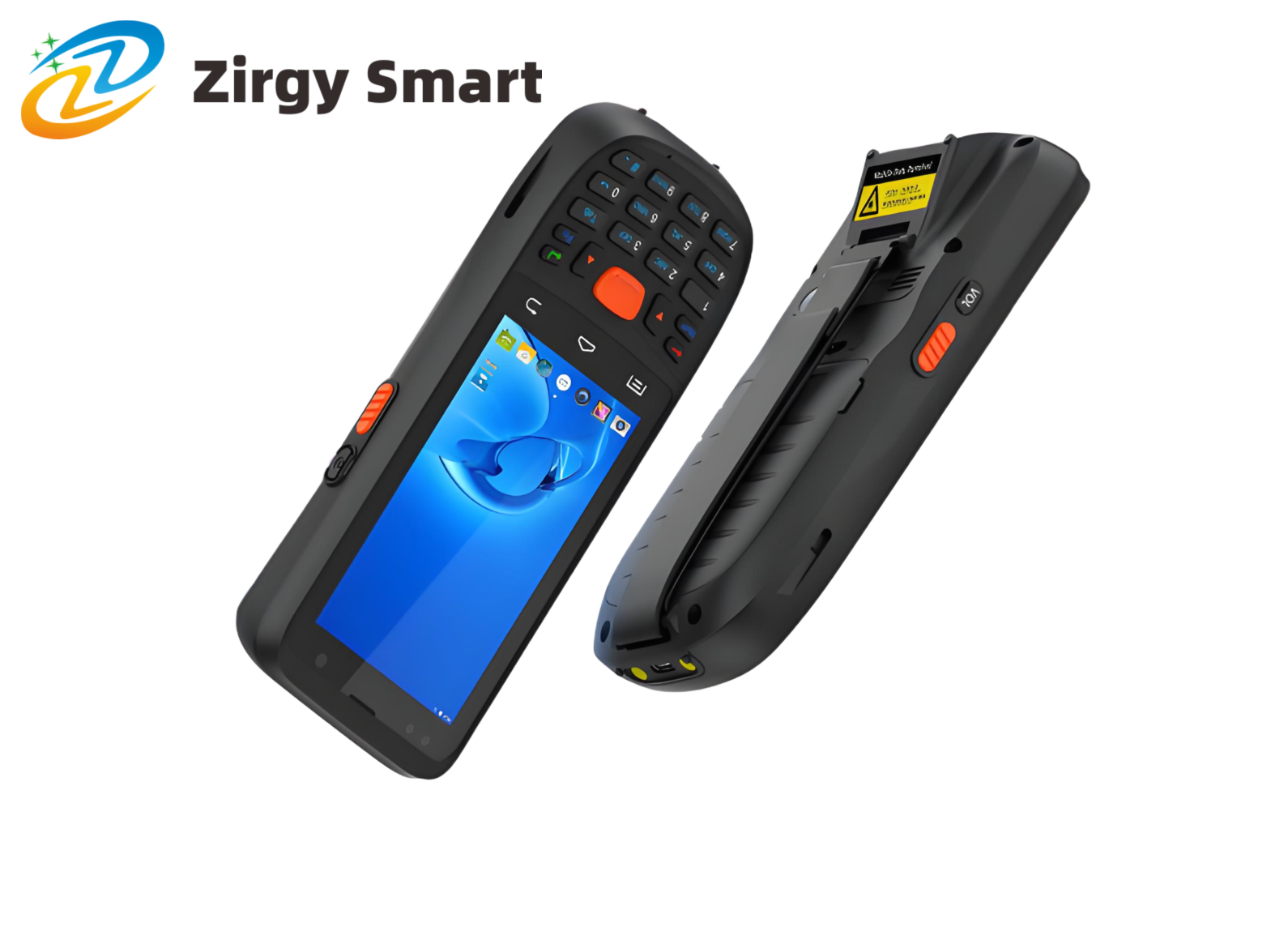

Ⅷ Product display
