Ⅰ Product introduction
Name: NFC handheld terminal ZJ5010
The NFC handheld device ZJ5010 is mainly applicable to industries such as asset management, medical device management, inventory of jewelry, warehousing management, clothing inventory, vehicle management, highway toll collection, financial management, logistics, etc.
Ⅱ Product features
● Android-based high-speed quad-core processor
It adopts the Android 7.0 system and is equipped with a quad-core high-speed processor, 2GB of RAM, and 16GB of ROM. It supports TF card expansion up to 128GB, offering a large storage capacity, fast operation speed, and stable performance. It can easily handle various task instructions and support the smooth processing of multiple tasks, ensuring reliable mobile information processing.
● Custom-developed with optional functions
It supports the free selection of functions such as 1D/2D barcode scanning, UHF/HF/LF radio frequency identification, PSAM (Purchase Secure Access Module), NFC (Near Field Communication), etc. It can also be equipped with some modules provided by customers. It provides secondary development interfaces and technical support to meet the application requirements of multiple industries.
● Powerful barcode scanning function
It supports the scanning of 1D and 2D barcodes, providing higher recognition accuracy and speed. Moreover, it can read damaged or low-quality barcodes, ensuring efficient, convenient, and rapid reading.
It adopts the Android 7.0 system and is equipped with a quad-core high-speed processor, 2GB of RAM, and 16GB of ROM. It supports TF card expansion up to 128GB, offering a large storage capacity, fast operation speed, and stable performance. It can easily handle various task instructions and support the smooth processing of multiple tasks, ensuring reliable mobile information processing.
● Custom-developed with optional functions
It supports the free selection of functions such as 1D/2D barcode scanning, UHF/HF/LF radio frequency identification, PSAM (Purchase Secure Access Module), NFC (Near Field Communication), etc. It can also be equipped with some modules provided by customers. It provides secondary development interfaces and technical support to meet the application requirements of multiple industries.
● Powerful barcode scanning function
It supports the scanning of 1D and 2D barcodes, providing higher recognition accuracy and speed. Moreover, it can read damaged or low-quality barcodes, ensuring efficient, convenient, and rapid reading.
Ⅲ Fundamental parameters
| Product type | ZJ5010 |
| Overall dimensions | 162×78×22±2mm |
| Overall weight | Less than 450 grams |
| Display screen | 4.7寸IPS high definition screen, with a resolution of 720*1280 |
| Touch screen | Corning Gorilla Glass 3, industrial-grade, multi-touch capacitive touch screen |
| Expansion socket | 1 sim card socket, 2 PSAM card socket |
| Communication interface | High-speed USB2.0 device-side interface 3.5mm pin inserted into the charging port |
| Indicator lights | Network indicator light, charging indicator light |
| Keyboard | Scanning button, functional button |
| Camera | An 8-megapixel rear-facing camera with a flash and autofocus function |
| Torch | Low power consumption LED light illumination for emergency usage |
| GPS | Navigation with built-in GPS system, with an error range of ±5m |
Ⅳ Performance parameters
| CPU | Quad-core 64-dit Coretex-A53, main frequency is 1.3GHz |
| Memory capacity | RAM：2GB ROM：16GB |
| Expanded memory | Support 128GB Micro SD card |
| Operating system | Android 7.0 |
| Data communication | 4G:TD-LTE Band38/39/40/41 FDD-LTE Band 1,2,3,4,7,17,20; 3G:WCDMA( 850/1900/2100MHz); 2G:GSM/GPRS/Edge( 850/900/1800/1900MHz) |
| WIFI | 2.4G/5G dual-frequency, compliant with IEEE802.11a/b/g/n |
| Bluetooth | Compliant with Bluetooth 4.0 |
Ⅴ Operating environment
| Operating temperature | -20℃～50℃ |
| Storage temperature | -20℃～70℃ |
| Relative humidity | 5%～95% no condensation |
| Protection level | Main unit is IP65 |
Ⅵ Battery performance
| Battery capacity | 4750mAh lithium polymer battery |
| Standby time | Turning off wireless communication function, the standby time is more than 360 hours |
| Charging time | Less than 4.5 hours |
| Operating time | More than 10 hours (fully charged) |
Ⅶ Data collection
| Bar code collection (configurable) | |
| One-dimensional bar code | |
| One-dimensional laser scanning module | Honeywell N431X/others |
| Support types of one-dimensional barcode | Code 39, Code 93, Code128, Codebar, EAN- 13, EAN- 8, UPC-A, UPC- E, ITF 14, UCC/EAN- 128, ITF25, Matrix 25, EAN-128, ISBN, etc. |
| Two-dimensional barcode | |
| Two-dimensional scanning engine | Honeywell-6603/others |
| Supported types of two-dimensional barcode | PDF417, MicroPDF417,Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes,US PostNet,US Planet, UK Postal, Australian Postal,Japan Postal, Dutch Postal, etc. |
| RFID(optional configuration) | |
| Ultra-high frequency | |
| Supported frequency | 915MHz, 865MHz (865-868MHz or 902-928MHz) |
| Supported protocol | EPC C1 GEN2 ISO18000-6C protocol |
| Recognition distance | Optional distance of 0-2 meters / related to the tag and the environment |
| High-frequency | |
| Supported frequency | 13.56MHz |
| Supported protocol | ISO15693 and ISO14443 dual-protocol |
| Recognition distance | 0-7 centimeters (related to the environment and the tag) |
| Low frequency | 125K/134.2K animal ear tag |
| High frequency (CPU card) | Support reading and writing of CPU card, usage can be in combined with PSAM |
| Active 2.45G(customization) | With a distance of 200m, 200 tags can be read at one time |
| Other optional modules | |
| Power infrared (customized) | Supports the power infrared function. |
| ZigBee (customized) | Suitable for wireless networking data collection |
| 433M (customized) | Reading distance is more than 200 meters, and the distance is adjustabe |
| Accessories | |
| Standard configuration | Lithium battery, adapter, DC charging cable |
| Optional configuration | Backpack |
Note: The product parameters are for reference only. If there are any updates, we will not notify you separately.

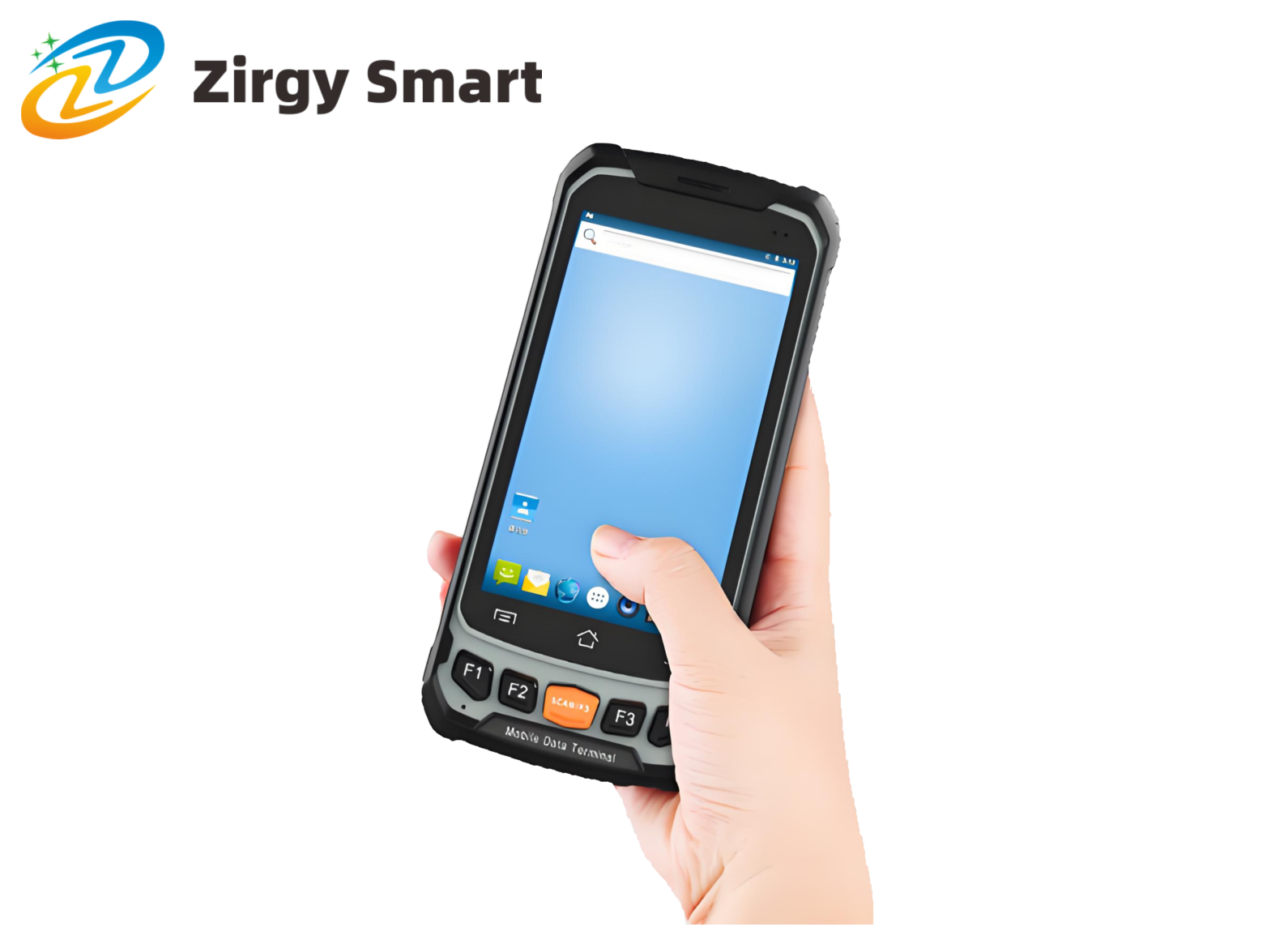

Ⅷ Product display
