I Product overview

II Performance parameters

● Standard version
CPU: Cortex-A53 2.0 GHz octa-core
RAM+ROM: 3GB +32GB
Expanded memory: MicroSD (TF) card can be expanded to 128 GB
Operating system:Android 12; Support Soti MobiControl, SafeUEM, etc.

● High-end version
CPU:Cortex-A53 2.0 GHz Octa-core
RAM+ROM:4GB +64GB
Expanded memory: MicroSD (TF) card can be expanded to 128 GB
Operating system: Android 12; Support Soti MobiControl, SafeUEM, etc.

III Data communication

● Octa-core
WLAN: Support IEEE802.11 a/b/g/n/ac protocol (2.4 G/ 5 G, dual-frequency) , built-in antenna
WWAN: 2G: 900/1800 MHz
         3G: 900/1900/2000/2100MHz
         4G: TDD-LTB:B38/B39/B40/B41
                FDD-LTE:B1/B3/B5
Bluetooth: Bluetooth 4.0/5.0;BLE
GNSS: Integrated with GPS, GLONASS and Beidou; built-in antenna, support AGPS

IV physical dimension

Overall dimensions: 179 mm x 80.0 mm x 17.2 mm
Overall weight: <242 g(depends on module configuration)
Display screen: 5.7-inch IPS FHD screen with a resolution of 1440 x 720
Touch screen: Corning Gorilla Glass, supporting multi-touch, and also supporting operation with gloves or wet hands.
Battery capacity: Chargeable lithium polymer battery 4300 mAh; The battery capacity in the optional handle mode is 10,000 mAh.
Standby time: > 300 hours
Operating time: > 12 hours (depending on usage conditions and the network environment)
Charging time: 3 hours (using the standard power adapter and data cable)
Expanded card slots: 1 SIM card slot, one slot for either a SIM card or a TF card (selectable)
Communication interface: USB 2.0 Type-C, OTG
Audio: Speaker, 1 microphone, supporting voice calls
Keyboard: 1 power button, 2 scanning buttons, 2 volume buttons, 3 TP buttons
Sensors: Gravity sensor, proximity sensor, ambient light sensor, vibration moto

V Development environment

SDK: Terminal software development kit
Development language: Java
Development kit: Unknown

VI Utilization environment

Operating temperature: -20 °C to 50 °C (Low-temperature batteries can be provided optionally when the minimum order quantity is met.)
Operating temperature: -40 °C to 70 °C
Environment humidity: 5% RH - 95% RH (no condensation)
Falling specification: Within the operating temperature range, each of the six sides can endure the impact of falling from a height of 1.8 meters to a concrete ground for ≥ 20 times.
Rolling test: Continuously roll 1000 times, with each roll being 0.5 meters. After rolling on the six contact surfaces, it can still operate stably and meets the IEC rolling specification.
Protection rating: IP65/IP67, meeting the IEC sealing standard.
Electrostatic protection: ±15 kV air discharge, ±8 kV contact discharge

VII Other parameters

Data collection
● Camera:
Rear camera: 13-megapixel color camera, supporting autofocus and flash.
Front camera (optional): 5-megapixel color camera.

● NFC
 Operating frequency: 13.56MHz
Protocol standard: ISO14443A/B,ISO15693,NFC-IP1,NFC-IP2, etc.
Tag standard: M1 card (s50, s70); CPU card, NFC tag, etc.
Read-write distance: 2-4cm

Barcode collection (optional configuration)
Two-dimensional scanning engine:Zebra: SE4710; Honeywell: N6603
Supported types of one-dimensional barcode: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5,
Chinese 2 of 5, Codabar, MSI, RSS, etc.
Supported types of two-dimensional barcode: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, MicroQRcode, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, DutchPostal (KIX), etc.

Accessories
Standard configuration: Adapter, data cable, anti-drop rope, screen protector, etc.
Optional configuration: Base, sheath, etc

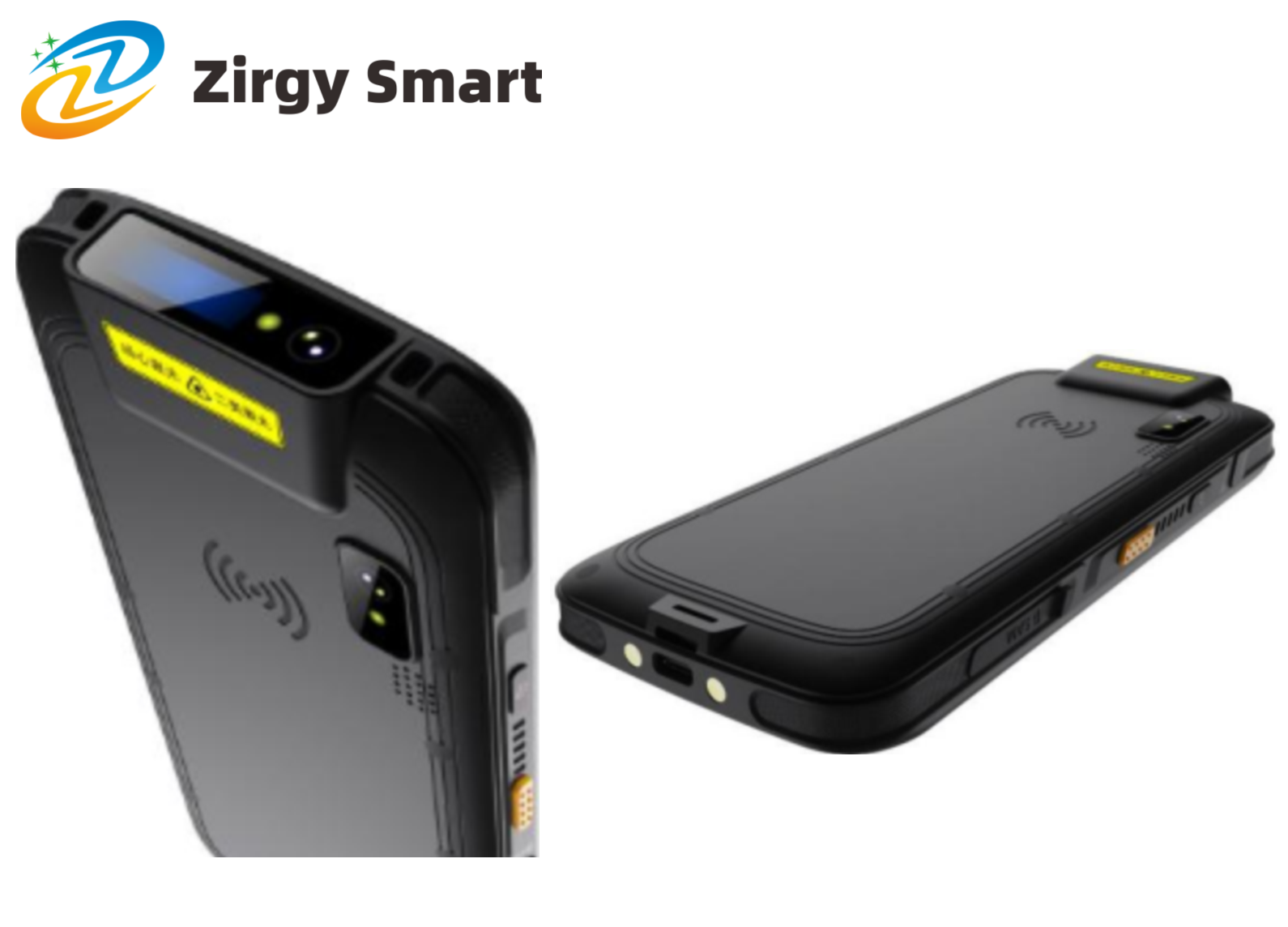

VIII Product display
