Ⅰ Product introduction
Name: Ultra-high frequency handheld terminal ZJ5002R (Chinese chip)
Ultra-high frequency handheld terminal ZJ5002R (Chinese chip) mianly applicable to logistics, retailing, warehousing, meter reading, all-in-one card systems, identify recognition, population census, etc.
Ⅱ Performance parameters
| Quad-core | |
| CPU | Cortex-A53 1.45GHz |
| RAM+ROM | 2GB+16GB |
| Expansion memory | MicroSD (TF) card can be expanded to 128GB |
| Operating system | Android 6.0; Support Soti MobiControl, SafeUEM, etc. |
| Octa-core | |
| CPU | Cortex-A53 Octa-core 2.5GHz |
| RAM+ROM | 3GB+32GB |
| Expansion memory | MicroSD (TF) card can be expanded to 128GB |
| Operating system | Android 8.1; Support Soti MobiControl, SafeUEM, etc. |
Ⅲ Data communication
| Quad-core | |
| WLAN | Support IEEE802.11 a/b/g/n protocol, (2.4G/5G dual frequency); built-in antenna |
| WWAN | 2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: TDD-LTE: B38, B39, B40, B41 FDD-LTE: B1, B3, B5 |
| Bluetooth | Bluetooth 4.0, BLE |
| GNSS | Integrated with GPS, GLONASS and Beidou; built-in antenna, support AGPS |
| Octa-core | |
| WLAN | Support IEEE802.11 a/b/g/n/ac protocol (2.4G/5G dual-frequency), built-in antenna |
| WWAN | 2G: 900/1800MHz 3G: WCDMA：B1,B8 CDMA2000 EVDO: BC0 TD-SCDMA：B34,B39 4G: B1,B3,B5,B8,B34,B38,B39,B40,B41 |
| Bluetooth | Bluetooth v2.1+EDR,3.0+HS,v4.1+HS |
| GNSS | Integrated with GPS, GLONASS and Beidou; built-in antenna, support AGPS |
Ⅳ Physical parameters
| Overall dimensions | 164.2mm x 78.8mm x 17mm (basic edition) |
| Overall weight | <288g (basic edition) (depends on module configuration) |
| Display screen | 5.2-inch IPS FHD screen with a resolution of 1920x1080 |
| Touch screen | Corning Gorilla Glass, supporting multi-touch, and also supporting operation with gloves or wet hands. |
| Battery capacity | Rechargeable lithium polymer battery with a capacity of 5000mAh Standby time: > 350 hours Working time: > 12 hours (depending on usage conditions and network environment) Charging time: 3-4 hours (using the standard power adapter and data cable) |
| Expansion card socket | 1 SIM card socket, a card socket either SIM or TF |
| Communication interface | USB 2.0 Type-C, OTG, octa-core version supporting Type-C earphone |
| Audio | 1 speaker, 2 microphones |
| Keyboard | 4 main keys. 1 power button, 2 scanning buttons, 1 multi-functional button |
| Sensors | Gravity sensor, light sensor, promixity sensor, vibration motor |
Ⅴ Development environment
| SDK | Zirgy terminal software development kit |
| Development language | Java |
| Development kit | Eclipse / Android Studio |
Ⅵ Usage environment
| Operating temperature | -20°C to +50°C |
| Storage temperature | -40°C to +70°C |
| Environmental humidity | 5%RH - 95%RH (no condensation) |
| Falling specification | Within the operating temperature range, all six sides can withstand the impact of multiple drops (at least 20 times) from a height of 1.8 meters onto a concrete floor. |
| Rolling test | Roll continuously for 1000 times at a height of 0.5 meters. After rolling with all six surfaces in contact, it can still operate stably and meet the IEC rolling specification. |
| Protection rating | IP65/IP67, meeting the IEC sealing standard. |
| Electrostatic protection | ±15KV air discharge, ±6KV contact discharge |
Ⅶ Data collection
| Camera | |
| Rear camera | 13-megapixel color camera, supporting autofocus and flash. |
| Front camera (optional configuration) | 5-megapixel color camera |
| Barcode collection (optional configuration) | |
| One-dimensional scanning engine (quad-core) | Zebra SE965 / Honeywell N4313 |
| Support types of one-dimensional barcode | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,Codabar, MSI, RSS, etc. |
| Two-dimensional scanning engine (quad-core) | Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 |
| Two-dimensional scanning engine (octa core) | Zebra: SE2707 |
| Supported types of two-dimensional barcode | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code,Aztec,MaxiCode;Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal,Japan Postal,Dutch Postal (KIX) ,etc. |
| Front and rear iris recognition (optional) | |
| Identification time | <150ms |
| Operating distance | 20-40cm |
| FAR | 1/10000000 |
| Protocol standard | ISO/IEC 19794-6, GB/T 20979-2007 |
| *Choose one from the front and rear iris recognition and the front camera. | |
| RFID high frequency (optional configuration) | |
| Operating frequency | 13.56MHz |
| Protocol standard | ISO14443A/B, ISO15693 |
| Tag standard | • M1卡 (S50/70), M0 (Ultralight) • M3 (Desfire D40/D41/D81), CPU_A card • CPU_B card • ICODE II, TI2048, LRI64K • Other standard high-frequency cards are customizable |
| Read-write distance | 3-8cm |
| NFC (optional configuration) | |
| Operating frequency | 13.56MHz |
| Protocol standard | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Tag standard | M1 card (S50, S70), CPU card, NFC tag, etc. |
| Read-write distance | 2-4cm |
| RFID ultra-high frequency (optional configuration) | |
| Operating frequency | 865MHz-868MHz / 920-925MHz / 902-928MHz |
| * For detailed parameters of the ultra-high frequency (UHF) module, please refer to the parameter specification document of the C71 UHF version. | |
| Infrared (optional configuration) | |
| Operating frequency point | 38kHz |
| * For detailed parameters of the infrared module, please refer to the parameter specification document of the C71 infrared version. | |
| Fingerprint identification (optional configuration) | |
| Sensors | Capacitive TCS1/TCS2; Optical Morpho CBM-E3 |
| * For detailed parameters of the fingerprint module, please refer to the parameter specification document of the C71 fingerprint version. | |
| PSAM (optional configuration) | |
| Card socket | 2 PSAM card sockets |
| Protocol standard | ISO7816 T=0, T=1 |
Ⅷ Accessories
| Standard configuration | Adapter, data cable, etc. |
| optional configuration | Base, sheath, etc. |
| *For details of the accessories, please refer to the Accessories Guide. | |

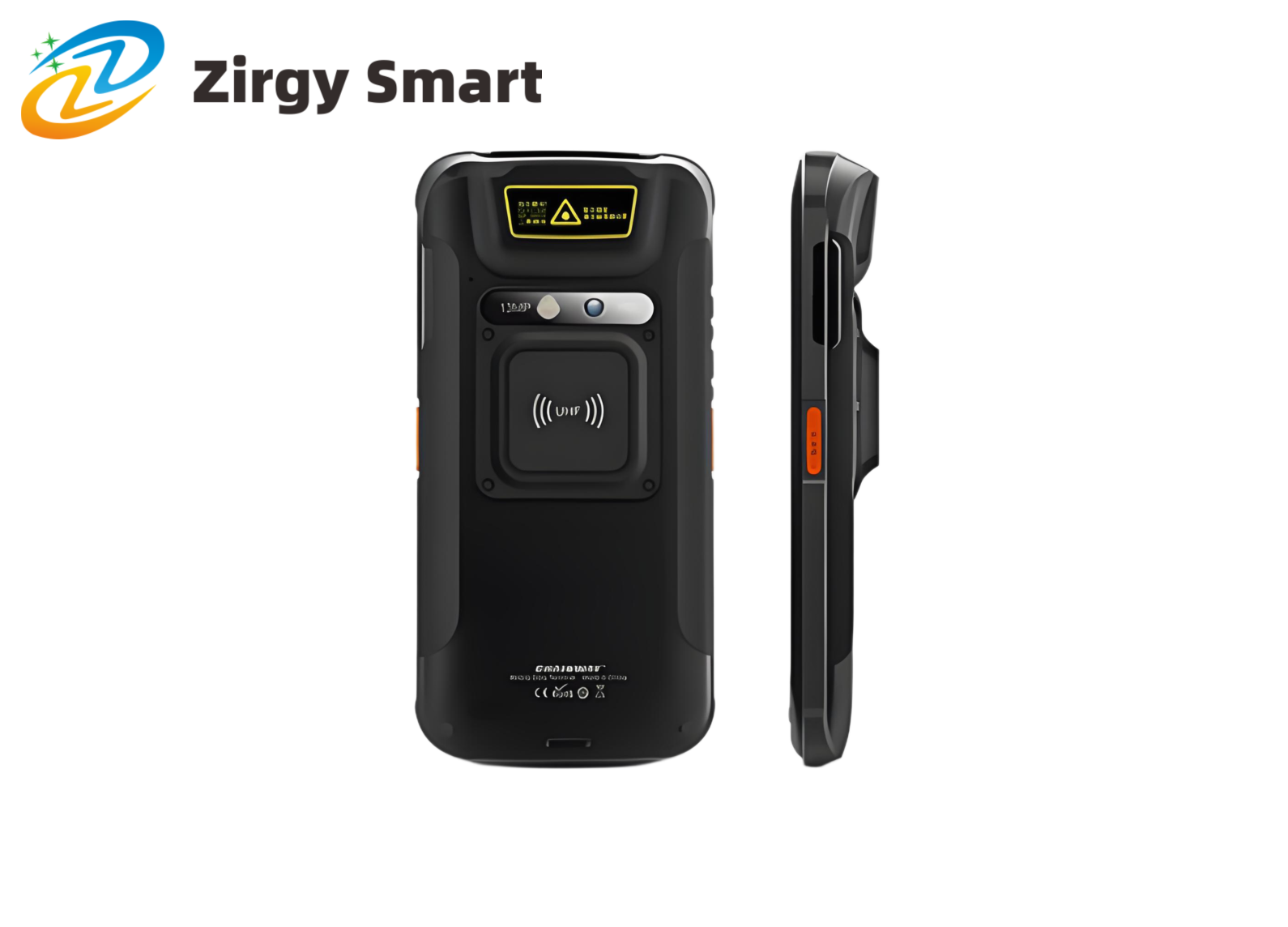

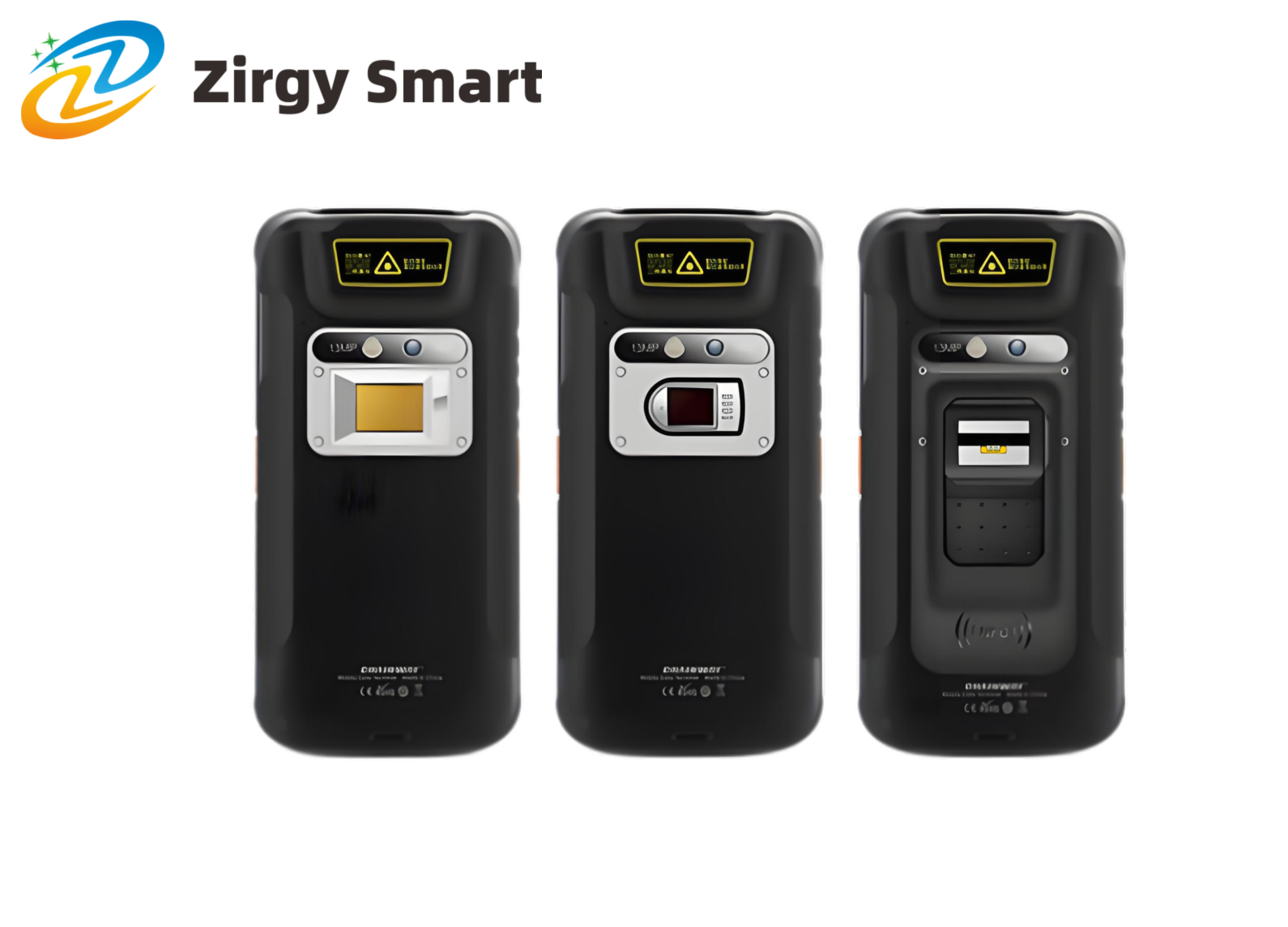

Ⅸ Product display
