Ⅰ Product introduction
Name: UHF handheld terminal ZJ5001RI (R2000 module)
UHF handheld terminal ZJ5001RI (R2000 module) mainly applicable to asset management, warehousing management, clothing inventory counting, vehicle management, troll management, financial management, etc.
Ⅱ Performance parameters
| Quad-core | |
| CPU | Cortex-A53 1.45GHz |
| RAM+ROM | 2GB+16GB |
| Expanded memory | MicroSD (TF) card can be expanded to 128GB |
| Operating system | Android 6.0; Support Soti MobiControl, SafeUEM, etc. |
| Octa-core | |
| CPU | Cortex-A53 octa-core 2.5GHz |
| RAM+ROM | 3GB+32GB |
| Expanded memory | MicroSD (TF) card can be expanded to 128GB |
| Operating system | Android 8.1; Support Soti MobiControl, SafeUEM, etc. |
Ⅲ Data communication
| Quad-core | |
| WLAN | Support IEEE802.11 a/b/g/n protocol (2.4G/5G dual frequency), built-in antenna |
| WWAN | 2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: TDD-LTE: B38, B39, B40, B41; FDD-LTE: B1, B3, B5 |
| Bluetooth | Bluetooth 4.0, BLE |
| GNSS | Integrated with GPS, GLONASS and Beidou; built-in antenna, AGPS is supported |
| Octa-core | |
| WLAN | Support IEEE802.11 a/b/g/n/ac protocol (2.4G/5G dual-frequency), built-in antenna |
| WWAN | 2G: 900/1800MHz 3G: WCDMA: B1, B8; CDMA2000 EVDO: BC0; TD-SCDMA: B34, B39 4G: B1, B3, B5, B8, B34, B38, B39, B40, B41 |
| Bluetooth | Bluetooth v2.1+EDR, 3.0+HS, v4.1+HS |
| GNSS | Integrated with GPS, GLONASS and Beidou; built-in antenna, AGPS is supported |
Ⅳ Physical parameters
| Overall dimensions | 164.2mm×80.0mm×24.3mm |
| Overall weight | 654g |
| Display screen | 5.2 inches, IPS FHD, with a resolution of 1920×1080 |
| Touch screen | Corning Gorilla glass, support multi-touch, support glove or wet hand operation |
| Battery | Chargeable lithium polymer battery with a capacity of 8000mAh Standby time is more than 500 hours Operating time is more than 12 hours (depending on usage circumstance and network environment) Charging time is about 3-4 hours (with standard power supply adapter and data cable) |
| Expanded card slots | 1 SIM card slot, 1 SIM/TF card slot |
| Communication interfaces | USB 2.0 Type-C, OTG, Octa-core version supports Type-C earphone |
| Audio | 1 speaker, 2 microphones |
| Keyboard | 4 main keys,1 power button, 2 scanning buttons, 1 multi-functional button |
| Sensors | Gravity sensor, ambient light sensor, proximity sensor |
Ⅴ Development environment
| SDK | Zirgy terminal software development kit |
| Development language | Java |
| Development kit | Eclipse / Android Studio |
Ⅵ Usage environment
| Operating temperature | -20°C to +50°C |
| Storage temperature | -40°C to +70°C |
| Environmental humidity | 5%RH - 95%RH (no condensation) |
| Falling specification | Within the operating temperature range, all six sides can withstand the impact of multiple drops from a height of 1.5 meters onto a concrete ground. |
| Rolling test | It can be continuously rolled 1000 times at a distance of 0.5 meters each time, and it can still operate stably after rolling on the six contact surfaces, meeting the IEC rolling specification. |
| Protection rating | The main unit has an IP65 protection rating, meeting the IEC sealing standard. |
| Electrostatic protection | ±15KV air discharge, ±6KV contact discharge |
Ⅶ Data collection
| Camera | |
| Camera | 13 million pixels colourful camera, supporting anto-focus, flashlight |
| RFID ultra-high frequency (optional configuration) | |
| Operating frequency | 860-960MHz, which can be customized based on requirement |
| Chinese frequency | 920-925MHz |
| American frequency | 902-928MHz |
| European frequency | 865-868MHz (ETSI EN 302 208) |
| Other frequency | Frequency standards of other nations (customizable) |
| Engine | CM2000-1, based on Impinj Indy R2000 |
| Protocol standard | EPC C1 GEN2 / ISO18000-6C |
| Antenna parameters | Linear polarized antenna (1.8dBi) / Circular polarized antenna (4dBi) |
| Power | 1W (30dBm, support +5dBm ~ +30dBm adjustment) Optional 2W (33dBm, for Lati America, etc) |
| Reading distance | ＞25 meters (circular polarized, indoor); ＞15 meters (circular polarized, outdoor open environment, Impinj MR6 tag); ＞21 meters (linear polarized, indoor); ＞7 meters (linear polarized, outdoor open environment) |
| Group reading speed | ＞200 tags per second (circular polarized) |
| * Reading distance and group reading speed are related to actual environment | |
| NFC (optional configuration) | |
| Operating frequency | 13.56MHz |
| Barcode collection (optional configuration) | |
|
One-dimensional scanning engine (quad-core)
|
Zebra SE965 / Honeywell N4313 |
|
Supported type of one-dimensional barcode
|
C/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar,MSI, RSS, etc. |
|
Two-dimensional scanning engine (quad-core)
|
Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603 |
|
Two-dimensional scanning engine (octa-core)
|
Zebra SE4750/ SE4750MR |
|
Supported two-dimensional barcodes
|
DF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes:US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Iris recognition (optional configuration) | |
| Recognition time | <150ms |
| Operating distance | 20-40cm |
| FAR | 1/10000000 |
| Protocol | ISO/IEC 19794-6, GB/T 20979-2007 |
Ⅷ Accessories
| Standard configuration | Adapter, data cable, etc. |
| Optional configuration | Base, sheath, handle, etc. |
| *Please refer to the accessory guide for the details of the accessories. | |

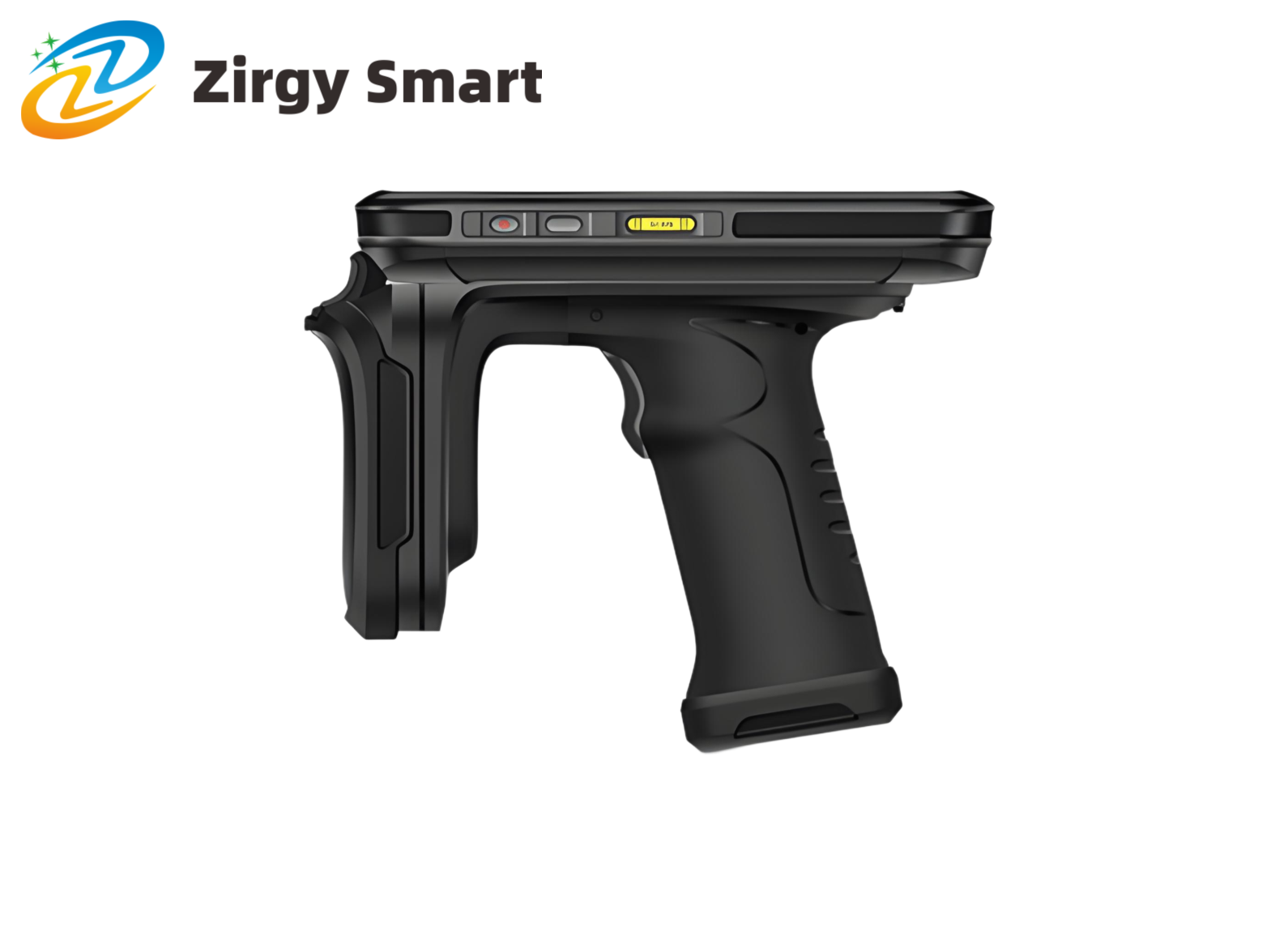

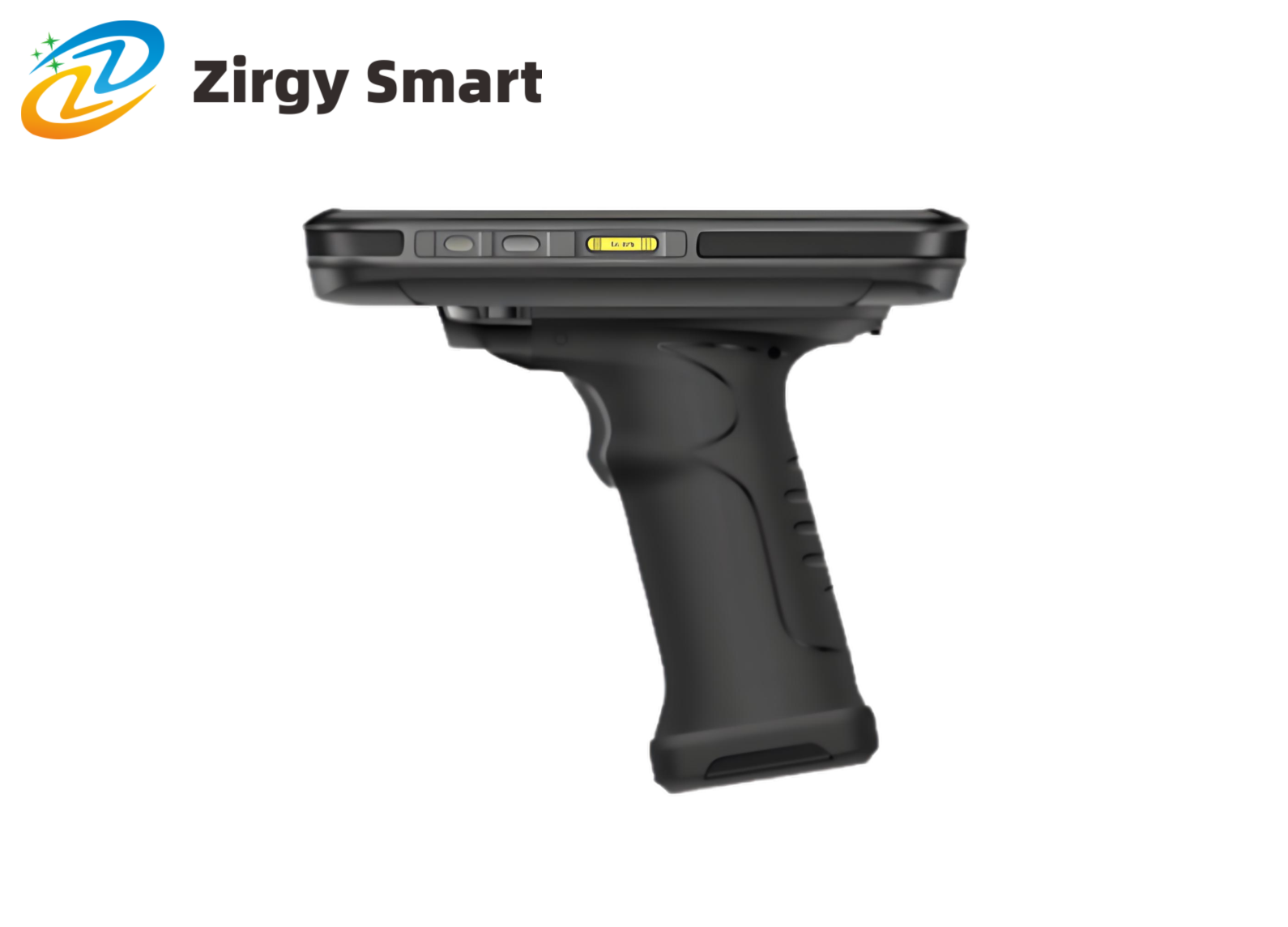

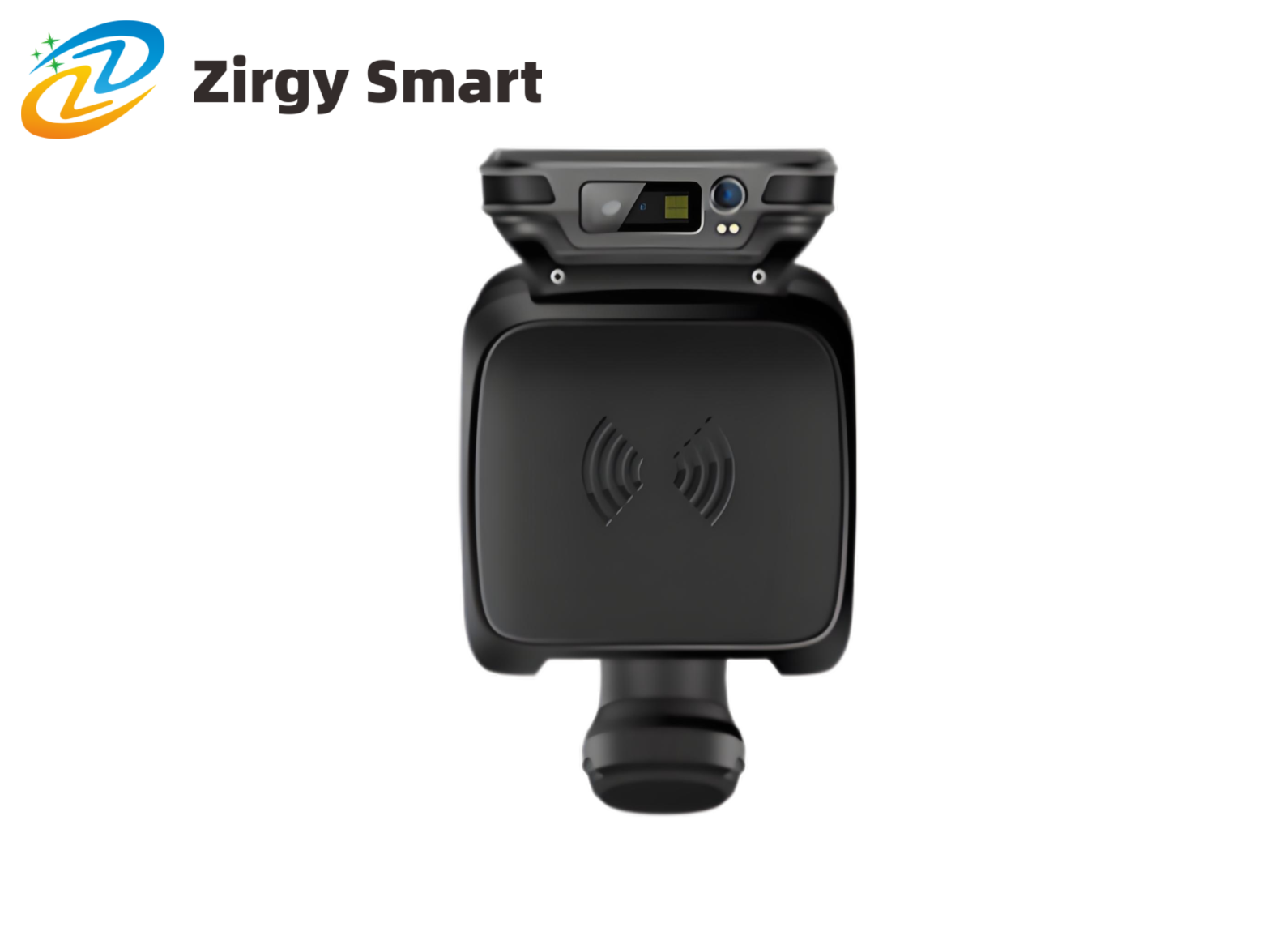

Ⅸ Product display
