I Product introduction

    The ZJ413 ultra-high frequency high-performance flat interrogator is a high-performance desktop card writing device independently developed by Zirgy. It supports mainstream UHF RFID air interface protocols such as EPC C1G2, ISO/IEC 18000-6C/6B, etc. This card issuer is a professional interrogator specifically designed and developed for tag information entry. It has excellent protection performance and reading and writing performance, and can achieve automatic group writing and single writing, quickly reading and writing tags in batches. Moreover, the software provided with this interrogator can also quickly import and export Excel spreadsheets, intelligently perform automatic data entry, realize the rapid binding and association of tags and data information, reduce cumbersome manual entry, and thus improve work efficiency.

• Book management
• Jewellery management
• Automatic clearance management
• Multi-tag issuing management

III Product features

• Designed with independent intellectual property rights;
• Fully support electronic tags compliant with the UHF EPC Gen2 (ISO18000-6C) protocol;
• Operating frequency range;
  GB: 920MHz~925MHz、
  GB: 840MHz~845MHz、
  FCC: 902MHz~928MHz、
  ETSI: 865MHz~868MHz (optional)
• Interface output power: 27dBm (optional)
• It supports active mode, command mode, trigger mode, and password working mode.
• Card reading rate: > 300 times per second;
• Read and write cards via USB communication.

IV Performance parameters

• Communication interface: USB2.0 (TYPE-C)
• Power supply method: USB power supply (The power capacity is not less than 5W.)
• Card reading distance: 0-30CM (depending on the power level and the performance of the tag)

V Environmental parameters

• Operating temperature -25℃~70℃
• Storage temperature -40℃~85℃
• Rlative humidity 5% RH~95%RH (In a non-coagulated state)
• Atmospheric pressure 86kPa~108kPa

VI Interface definition

• TYPE-C interface: USB communication interface (power supply and USB commnuication)
• Definition of indicator light:
• Power: The power indicator light. It stays red when the power is on.
• Working: When the interrogator is in operation, the working indicator light stays red.
• Identification: When the interrogator identifies an RFID tag, the indicator light blinks blue. It remains off when no tag is being identified.

VII Physical features

• Overall dimension: 400mm x 300mm x 35mm
• Indentificaiton area: 304 x 260mm
• Colour: Black
• Materials: Aviation aluminum + Acrylic

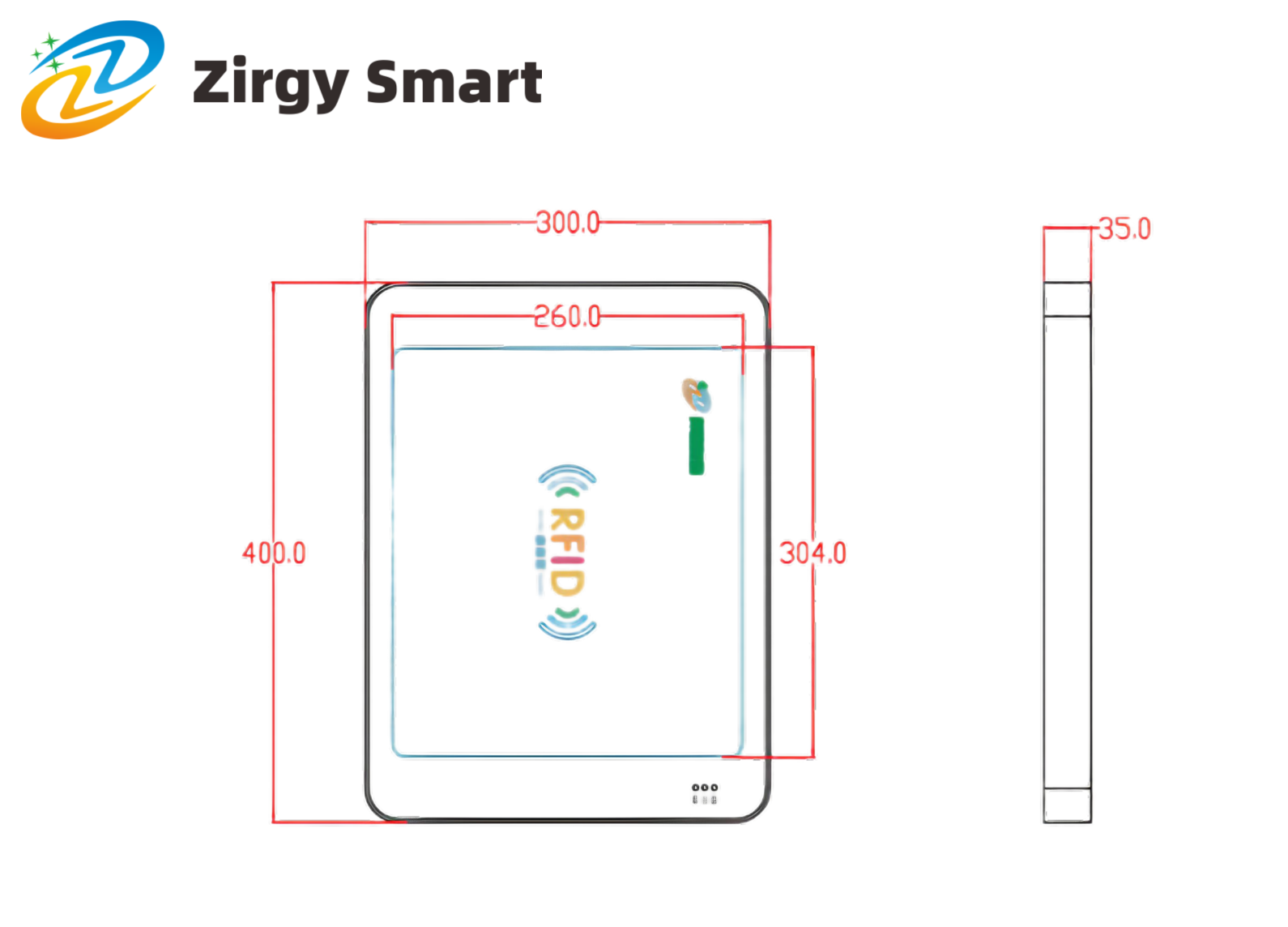

VIII Product dimension diagram
