I Production introduction
The ZJ407 USB is a small desktop reader-writer that is compatible with the ISO 18000-6C standard. Its operating frequency ranges from 902MHz to 928MHz. It is a small, integrated reader-writer used for short-distance identification or the management of background card issuers. With a compact and portable design, it is suitable for personnel access control, picture and document management, as well as operations such as reading, writing, authorizing, and formatting electronic tags in the background.
II Application field
- Logistics and warehousing management: Management of the flow of goods and warehousing, as well as the flow management of mails, parcels, transported luggage, etc.
- Intelligent parking lot management: Automation of parking lot management and charging.
- Production line management: Identification of fixed points in the production process.
- Product anti-counterfeiting detection: Utilize the write protection function of the memory in the tag to identify the authenticity of products.
- Other fields: In systems such as club management, libraries, student enrollment management, consumption management, attendance management, dining management, swimming pool management, etc.
III Technical parameters
- Dimensions: 107mm×107mm×24mm
- Weight: 150g/250g
- Operating temperature: -20℃~55℃
- Storage temperature: -40℃~85℃
- Operating frequency: Chinese standard (920~925MHz), American standard (902~928MHz), frequency standards of other multiple countries (customized)
- Tag protocol: ISO18000-6C (EPC GEN2)
- Frequency hopping mode: Frequency Hopping Spread Spectrum (FHSS) or fixed frequency, which can be set by software.
- Antenna parameters: 2dBi circularly polarized antenna (built-in)
- Output power: 12.5dBm~26dBm (adjustable by software)
- Reading and writing distance: Effective reading distance of tags: 0.5m (related to factors such as transmission power, antenna type, tag type, and application environment, etc.). Effective writing distance of tags: 0.2m (affected by factors such as transmission power, antenna type, tag type, and application environment, etc.)
- Working mode: Active mode, passive mode, response mode (not recommended)
- Power interface: DC +5V
- Communication interface: USB virtual keyboard, USB virtual serial port (customization required)
- Power adapter: Powered by USB
- Power cable: Provided
- RS-232 signal cable: Provided
- Development kit: Provide SDK
IV The specific actual configuration software is as follows

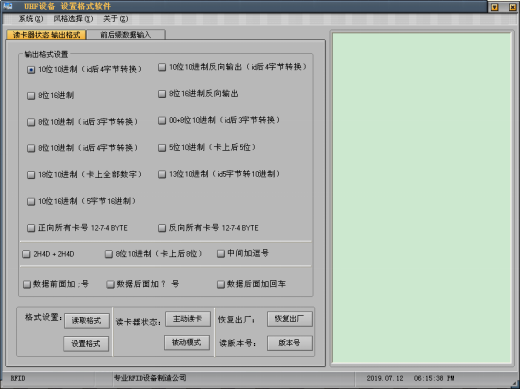

1. Switch of the USB output data format:

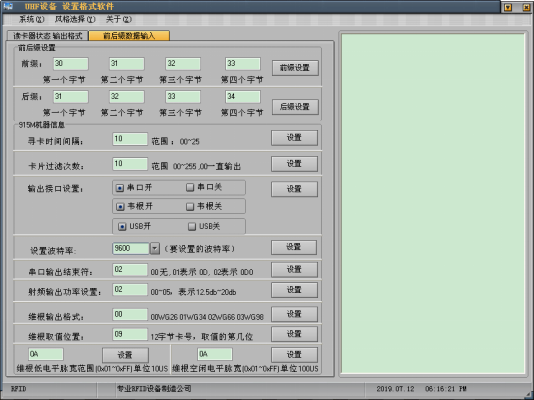

2. Output power setting, output interface setting:
V Product display
