Ⅰ Production introduction
Name: 2.4G handheld terminal ZJ5201
The 2.4G handheld terminal ZJ5201 features 4G full-network communication. It can be flexibly configured with functions such as 2.4G communication, 1D/2D barcode scanning, fingerprint recognition, and ID card recognition, fully embodying the high integration and free-configuration characteristics of the handheld terminal. Meanwhile, it supports wireless communication functions like WIFI and Bluetooth, meeting the application requirements in complex environments. It is commonly used in scenarios such as warehouse management, asset management, patrol management, and material management.
Ⅱ Product features
- Support GPS,Galileo, Glonass, Beidou;
- 500mAh lithium polymer battery, can work more than 12 hours after full charge;
- Rear 1300W pixel HD camera, support autofocus, flash, anti-shake, macro shooting;
- Support one-dimensional bar code, two-dimensional bar code scanning function;
- Support NFC function, support ISO14443A/B, 5693 protocol, read and write distance 2cm-5cm;
- Various modules can be assigned according to customer needs, and some good modules can be assembled by customers to meet the needs of various industries;
- Can be equipped with fingerprint recognition, ID card reading function according to customer needs, to meet the needs of various industries for personnel identification and record;
- Protection class IP66;
Ⅲ Product parameters
| Operating frequency | 2.4GHz～2.5GHz |
| Modulation mode | GFSK |
| Communication rate | 1Mbits/S |
| Receiving sensitivity | -93dBm |
| Antenna direction | Directional |
| Antenna gain | 3dBi |
| Recognition distance | ＞200 meters |
| CPU | Cortex-A53 octa-core 64-bit 2.0GHz processor |
| Memory | 2GB+16GB |
| System | Android 8.1 |
| Keyboard | Full touch screen |
| Display screen | 5.5-inch IPS color display |
| Battery capacity | 4500mAh lithium polymer battery |
| Standby time | Disable wireless communication and other functions can be standby for 320 hours |
| Operating time | More than 12 hours (one full charge) |
| Operating temperature | -20℃ to +50℃ |
| Storage temperature | -20℃ to +70℃ |
| Operating humidity | 5% ~ 95% (no condensation) |
| Dimensions (R x D) | 170*78*23mm |
| Weight | 0.4kg |
| Material | ABS |
Note: Under different national or regional standards and different environments, the parameters and functions of this card issuer may be different without prior notice
Ⅳ Product display

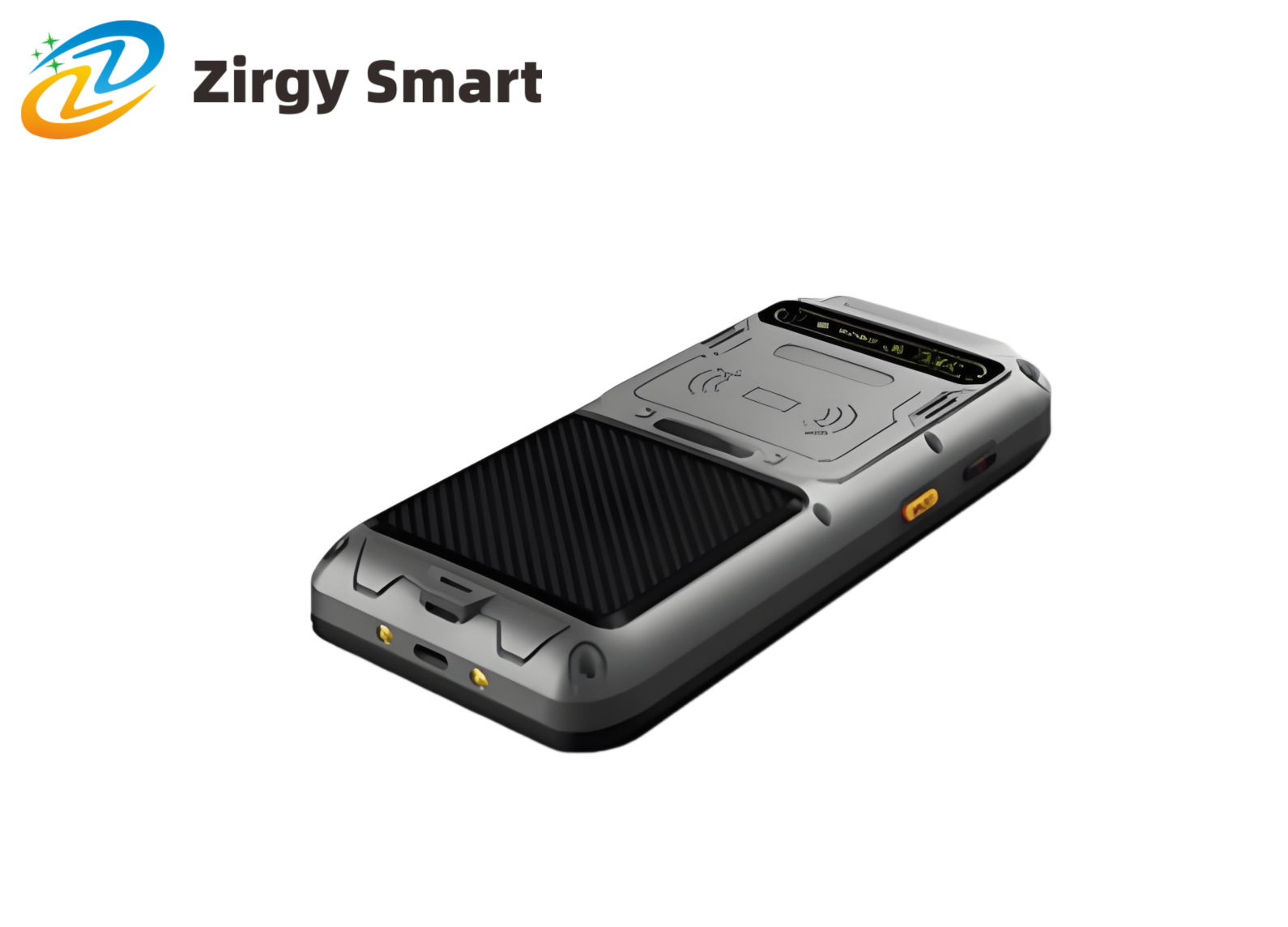

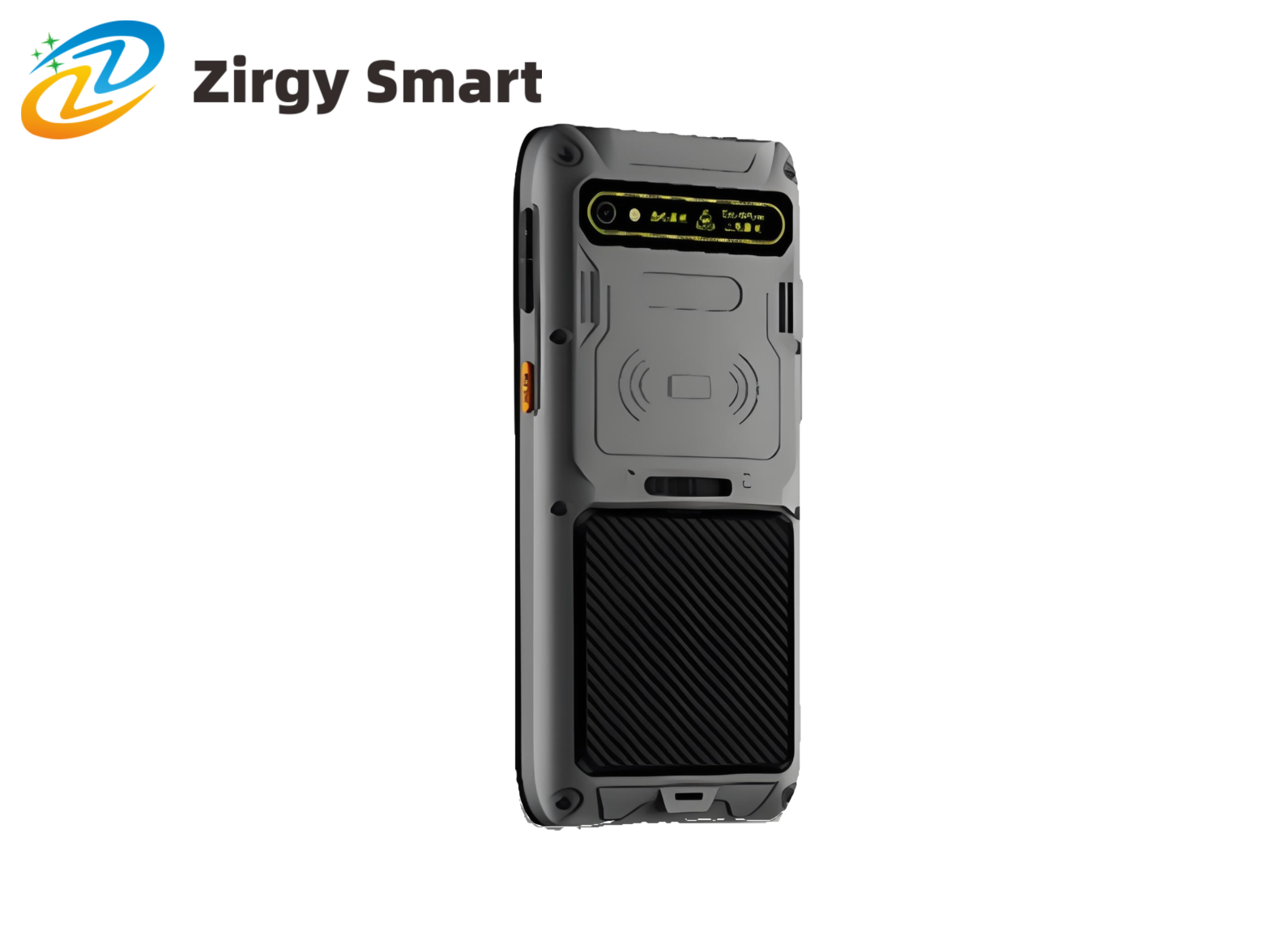

Real-shot display
