Ⅰ Product introduction
Name: 2.4G directional active base station ZJJ320200
2.4GHz directional reader writer ZJJ320200, operating frequency is 2.45GHz (ISM band), uses high-end RF SOC chip, integrates advanced anti-collision algorithm, has strong anti-interference. No human involvement required; With automatic identification, tracking, regional positioning, collection and other functions.
The 2.4GHz directional reader ZJJ320200 is ideal for outdoor applications and can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, power monitoring and production process control.
Ⅱ Product features
● Label recognition distance is far, the effective visual recognition distance is more than 200 meters;
● Multi-label recognition ability, up to 200 photos/second;
● Up to 2000 label data cache capability, data is not lost after power failure;
● Rich wired data interface, support 10M/100M adaptive network port, RS232, RS485, Weigand;
● Wireless data interface support 4G, WIFI data transmission;
● Wide voltage supply, DC 9V ~ 18V;
● Support command, automatic, trigger card reading and other online and offline working modes;
● Small and beautiful appearance, easy installation;
● Provide demo software and SDK development kit;
● Support serial port, network port upgrade;
Ⅲ Product parameters
| Operating frequency | 2.4GHz～2.5GHz |
| Modulation mode | GFSK |
| Communication rate | 1Mbits/S |
| Reception sensitivity | -93dBm |
| Antenna direction | Directional |
| Antenna gain | 12dBi |
| Recognition distance | ＞200 meters |
| Wired interface | RJ45/RS232/ RS485/Wiegand26/34 |
| Wireless interface | 4G (optional configuration) WIFI (optional configuration) |
| Operating voltage | DC 9V～18V |
| Normal current | <200mA/DC12V |
| Maximum current | <400mA/DC12V |
| Operating temperature | -20℃ to +60℃ |
| Storage temperature | 40℃ to +80℃ |
| Operating humidity | 5% ~ 95% (no condensation) |
| Dimensions(R x D) | -320*200*120mm |
| Weight | 1.5kg |
| Material | ABS, aluminum alloy |
Note: Under different national or regional standards and different environments, the parameters and functions of this card issuer may be different without prior notice
Ⅳ Product display

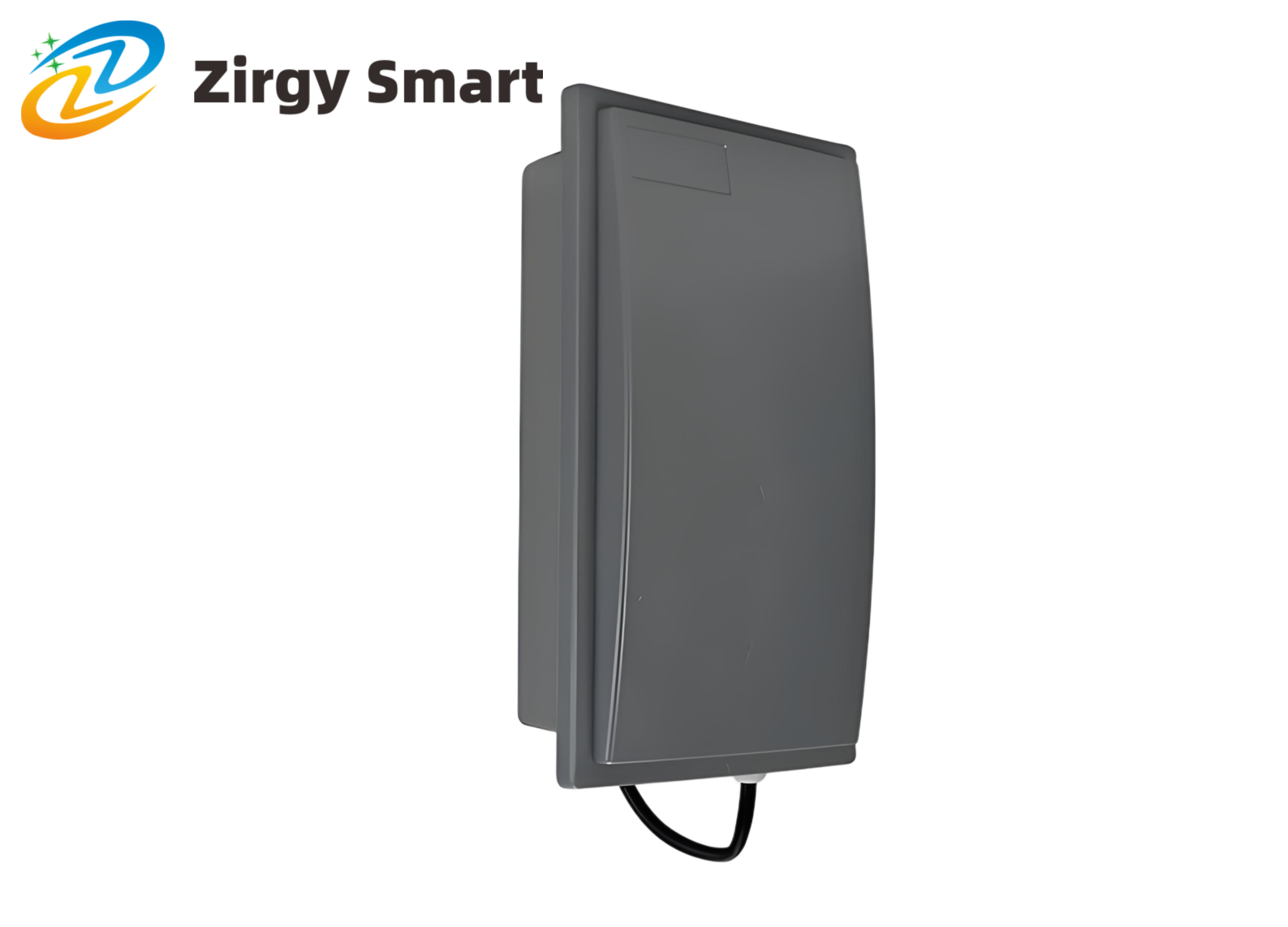

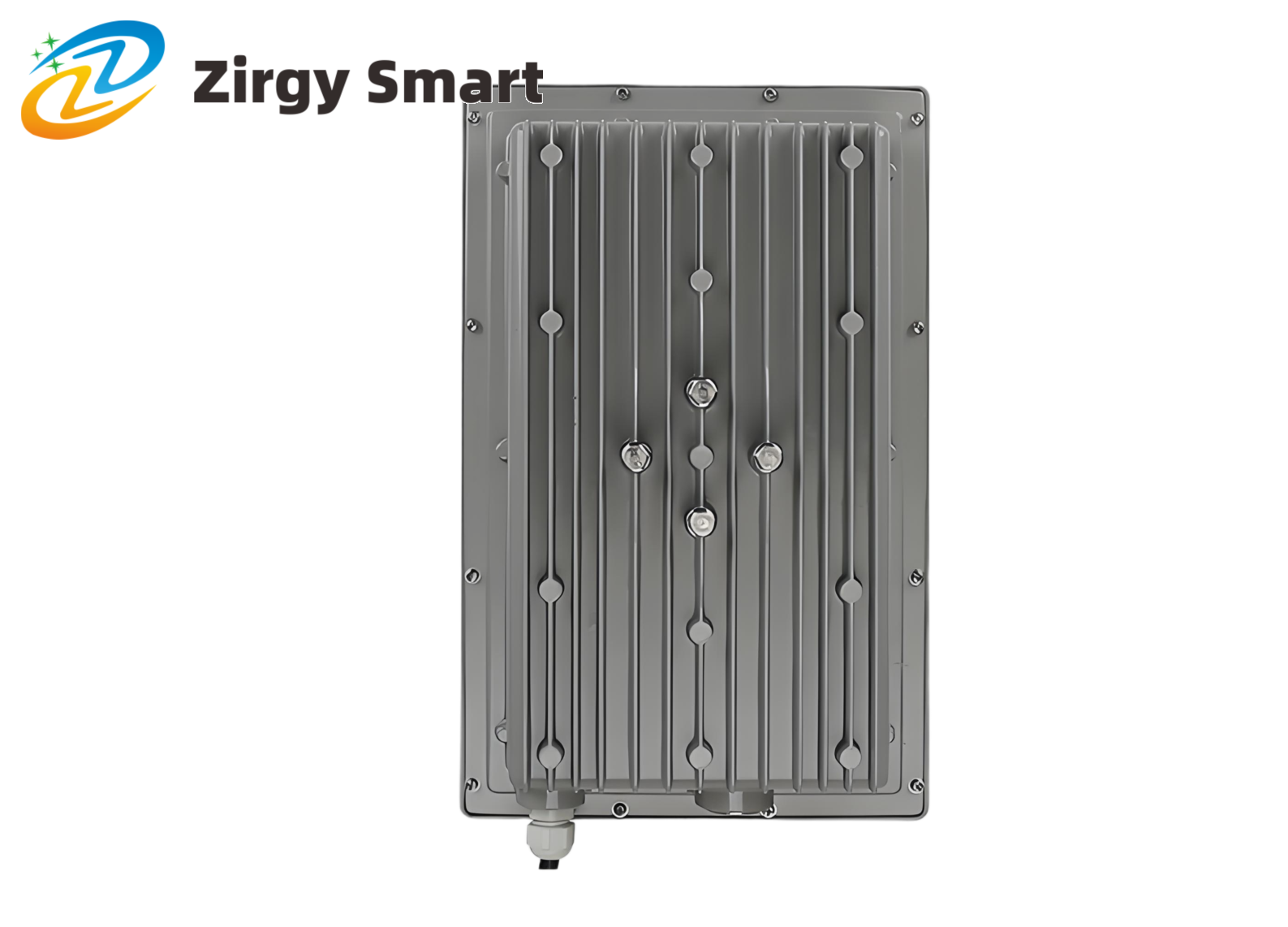

Real-shot display
