Ⅰ Product introduction

Name: 2.4G omnidirectional reader ZJJZ24090

2.4GHz omnidirectional reader ZJJZ24090, the operating frequency is 2.45GHz (ISM band), the use of high-end RF SOC chip, integration of advanced anti-collision algorithm, has strong anti-interference, no manual participation; With automatic identification, tracking, positioning, collection and other functions.
The 2.4GHz omnidirectional reader ZJJZ24090 is ideal for outdoor applications and can be widely used in livestock monitoring, logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, power monitoring and production process control.

Ⅱ Product feature

● Label recognition distance is far, the effective visual recognition distance is more than 200 meters;
● Multi-label recognition ability, up to 200 photos/second;
● Up to 2000 label data cache capability, data is not lost after power failure;
● Rich wired data interface, support 10M/100M adaptive network port (POE power supply), RS232, RS485, Weigand;
● Wireless data interface support 4G, WIFI data transmission, with GPS positioning function;
● Wide voltage supply, DC 9V ~ 24V;
● Support command, automatic, trigger card reading and other online and offline working modes;
● Waterproof IP65, small and beautiful appearance, easy installation;
● 24-hour object temperature monitoring report, motion detection report;
● Support serial port, network port upgrade;

Ⅲ Product parameters

Note: Under different national or regional standards and different environments, the parameters and functions of this card issuer may be different without prior notice


Ⅳ Product display

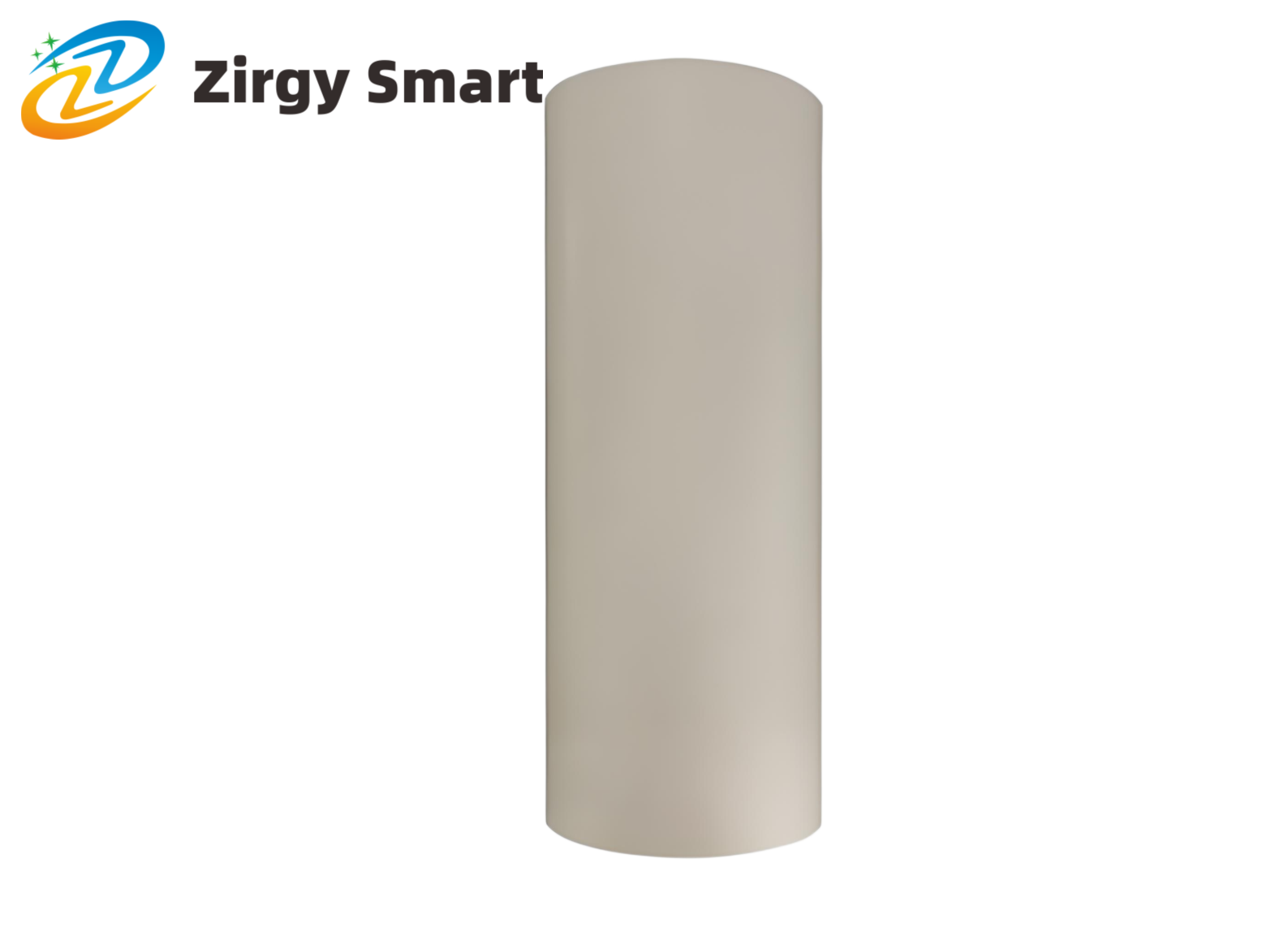

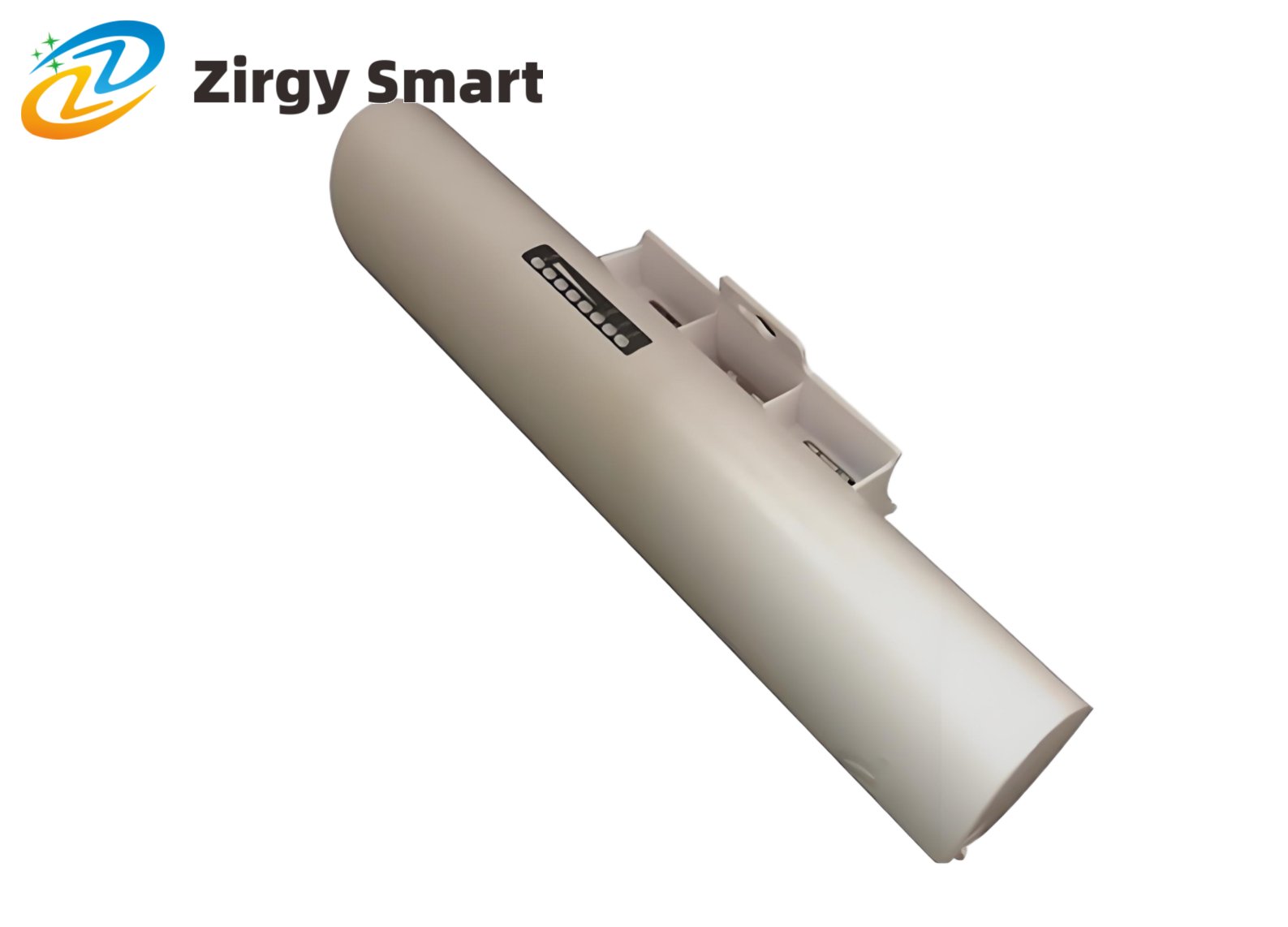

Real-shot display
