Ⅰ Technical parameters


Name: ceiling type indoor positioning base station ZJJ-15

● Product features

Ceiling type indoor positioning base station ZJJ-15 is a 125K low frequency combined with 2.4G integrated machine, can simultaneously identify multiple electronic tags (electronic bracelet), internal acousto-visual alarm function, but also can introduce a larger decibel alarm. It is often used in hospital personnel positioning, nursing home personnel positioning, prison personnel positioning and other application programs.
· Reading distance: 0-30 meters;
· Activation distance: 0-4 meters from activation trigger distance;
· Other electrical performance: internal acousto-optic alarm function;
· Synchronous grouping function: The 125k low-frequency magnetic field grouping function of the adjacent positioning card reader does not interfere with each other.

● Specifications

Operating voltage Rated power Operating frequency 2. 4G reception distance Reception sensitivity
DC24V or network P0E power supply <12W 2.45 GHz 1 m ~ 30 m (radius, adjustable) -90dBm
Conflict prevention capability Antenna orientation Angle Low frequency parameter Activation distance Communication mode
1000PCS <180 degrees 125KHz FSK modulation mode <4A TCP/IP




Ⅱ Product display


Real-shot display

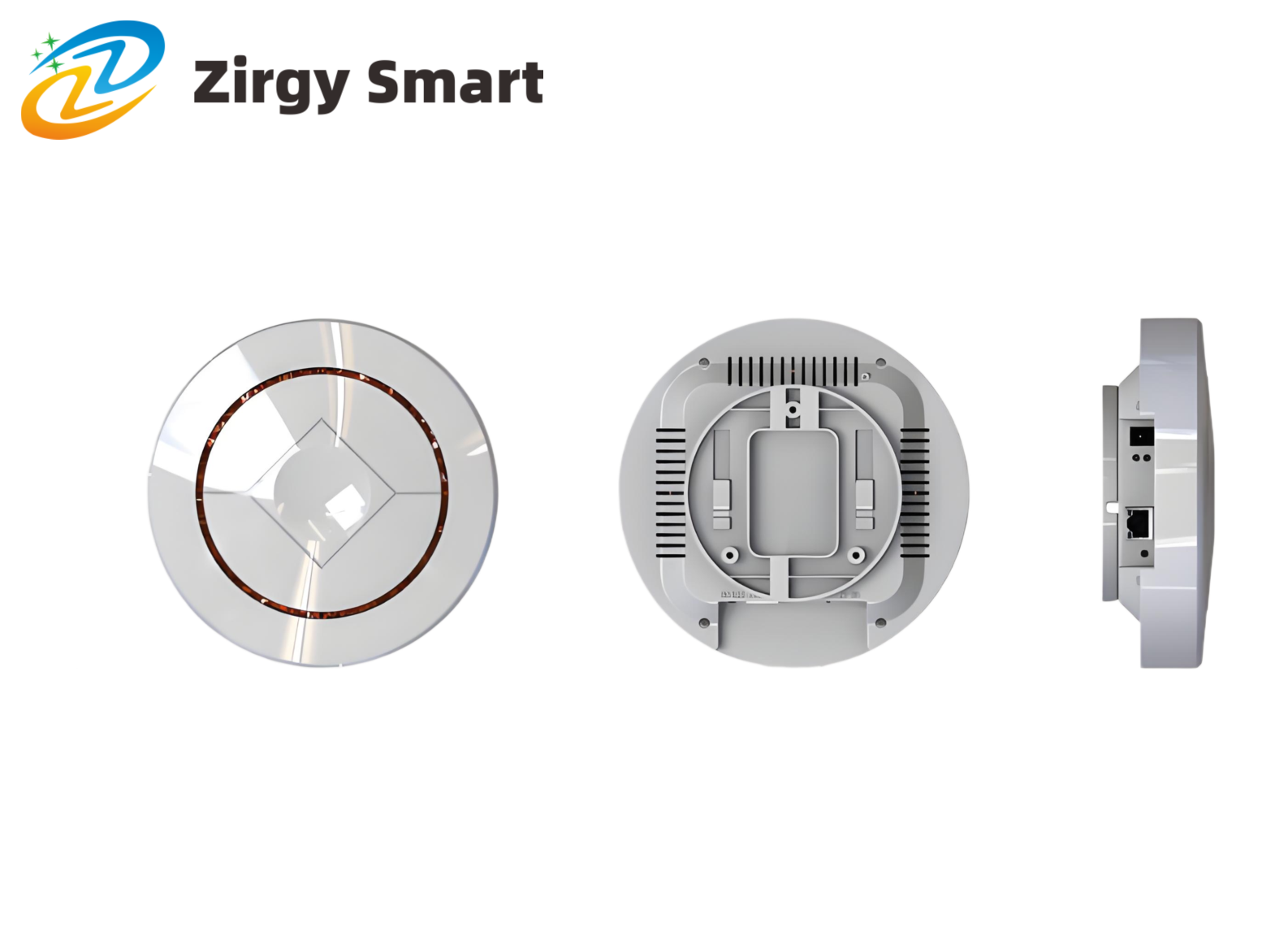

Ceiling type indoor positioning base station ZJJ-15 real shot display figure 1

Ceiling type indoor positioning base station ZJJ-15 real shot display figure 2
