Name: Active Bluetooth directional base station ZJB-53
Active Bluetooth directional base Station ZJB-53 is a universal Bluetooth device, built-in 8dbiPCB antenna, this device can be installed outdoors, its waterproof class is IP65. There are three LED indicators below the device to indicate the working status of the device, and the built-in buzzer prompts the reading of the label status by sounding, and the sound time can be set by the software or the sound can be turned off. It is drawn through a 15-core cable as a communication connection or power supply to other devices. Its communication interface includes: RS232, RS485, Wiegand. One end of the 15-wire is a 15-core head. In actual use, the 15-core head can be cut off and connected with other devices directly through the cable; Or add a DB15 head. In addition, in order to facilitate testing, the device is configured with a special expansion board for testing, so it is unnecessary to use the special expansion board in actual use. The device mainly configures parameters through the RS232 interface, which must be configured through the configuration software before using the product. It is mainly used for personnel attendance positioning, tunnel construction personnel attendance positioning, mine attendance positioning, operation vehicle near personnel safety alarm system, asset management system, fixed asset management system, etc.
Active Bluetooth directional base Station ZJB-53 is a universal Bluetooth device, built-in 8dbiPCB antenna, this device can be installed outdoors, its waterproof class is IP65. There are three LED indicators below the device to indicate the working status of the device, and the built-in buzzer prompts the reading of the label status by sounding, and the sound time can be set by the software or the sound can be turned off. It is drawn through a 15-core cable as a communication connection or power supply to other devices. Its communication interface includes: RS232, RS485, Wiegand. One end of the 15-wire is a 15-core head. In actual use, the 15-core head can be cut off and connected with other devices directly through the cable; Or add a DB15 head. In addition, in order to facilitate testing, the device is configured with a special expansion board for testing, so it is unnecessary to use the special expansion board in actual use. The device mainly configures parameters through the RS232 interface, which must be configured through the configuration software before using the product. It is mainly used for personnel attendance positioning, tunnel construction personnel attendance positioning, mine attendance positioning, operation vehicle near personnel safety alarm system, asset management system, fixed asset management system, etc.
Ⅱ Product information sheet
| Model | ZJB-53 |
| Operating frequency | 2.4GHz |
| Ability to read labels simultaneously | More than 2000 |
| Product material | ABS plastic |
| Product colour | Grey |
| Antenna | Built-in 8dbi antenna |
| Outjoin | 15-core cable |
| Communication interface | RS232, RS485, Wigand 26, Wigand 34, Wigand 66 |
| Status indication | 3 LED light indicator, built-in buzzer |
| Power supply | DC12-36V |
| Rated power | 1W |
| Operating temperature (℃) | -25℃ ～ +75℃ |
| Storage temperature (℃) | -40℃ ～ +85℃ |
| Operating humidity | Less than 95％ |
| Device dimensions | 250mm×250mm×58mm |
| Device weight | 1.0kg |
| Packing dimensions | 297mm×310mm×106mm |
| Packing quantity | 1 |
| Packing weight | 1.5kg |
Ⅲ Product main advantages
● Strong anti-interference ability, not affected by external radio waves;
● Strong ability to read labels at the same time (strong anti-collision ability);
● Built-in buffer of 2000 labels;
● Support outdoor installation, IP level: IP65;
● Adjustable reading label distance, 0-150 m adjustable (using software Settings);
● Simple interface, easy to use.
● Strong ability to read labels at the same time (strong anti-collision ability);
● Built-in buffer of 2000 labels;
● Support outdoor installation, IP level: IP65;
● Adjustable reading label distance, 0-150 m adjustable (using software Settings);
● Simple interface, easy to use.
Ⅳ Main function
● Equipment working status indicator (3 LED indicators, buzzer);
● The read label is saved to the buffer, with a buffer capacity of 2000 labels;
● After reading the label, it can be transmitted to the host computer through RS232, RS485, Wiegand 26/34/66;
● Communication mode has active transmission and passive transmission;
● RS232, RS485 communication rate can be set;
● The reading distance of the label can be set (0-31 files);
● The interval for reading the same label can be set;
● The speed of tag active upload can be set;
● External trigger start card reading;
● Can read the factory information of the device.
● The read label is saved to the buffer, with a buffer capacity of 2000 labels;
● After reading the label, it can be transmitted to the host computer through RS232, RS485, Wiegand 26/34/66;
● Communication mode has active transmission and passive transmission;
● RS232, RS485 communication rate can be set;
● The reading distance of the label can be set (0-31 files);
● The interval for reading the same label can be set;
● The speed of tag active upload can be set;
● External trigger start card reading;
● Can read the factory information of the device.
Ⅴ Technical indicators
● Operating frequency: 2.4GHz-2.5GHz;
● Working mode: active and passive combination;
● Structure: The outer cover is high temperature and low temperature resistant ABS plastic;
● Antenna parameters: built-in 8dbi antenna;
● Communication interface: RS232, RS485, Wiegand;
● Communication mode: active mode (the reader reads the label and sends it to the computer);
● There is a buffer capacity of 2000 labels inside the device;
● RS232, RS485 communication rate can be set by users;
● System identification distance: up to 150 meters;
● Recognition accuracy: 99.999999%;
● Provide demo software, API functions, etc.
● Various data formats can be output according to user requirements;
● Working voltage: DC12-36V;
● Rated power: 5W;
● Working temperature: -25℃ ~ 75℃;
● Storage temperature (℃) : -40℃ ~ 85℃;
● Working humidity: less than 95%.
● Working mode: active and passive combination;
● Structure: The outer cover is high temperature and low temperature resistant ABS plastic;
● Antenna parameters: built-in 8dbi antenna;
● Communication interface: RS232, RS485, Wiegand;
● Communication mode: active mode (the reader reads the label and sends it to the computer);
● There is a buffer capacity of 2000 labels inside the device;
● RS232, RS485 communication rate can be set by users;
● System identification distance: up to 150 meters;
● Recognition accuracy: 99.999999%;
● Provide demo software, API functions, etc.
● Various data formats can be output according to user requirements;
● Working voltage: DC12-36V;
● Rated power: 5W;
● Working temperature: -25℃ ~ 75℃;
● Storage temperature (℃) : -40℃ ~ 85℃;
● Working humidity: less than 95%.

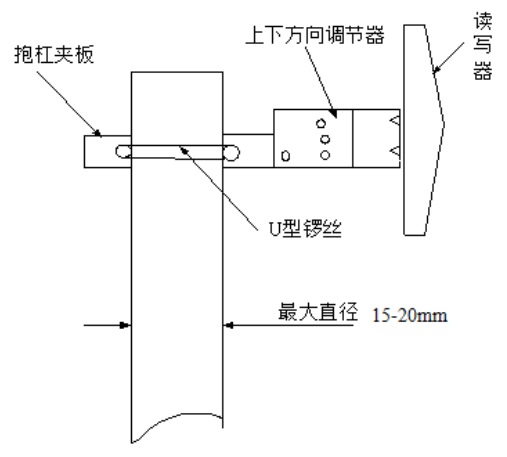

Ⅵ Installation diagram
Ⅶ Packing list
| Product models and names | Quantity |
| ZJB-53 active Bluetooth directional base station | 1 |
| Integrated device switching board | 1 |
| AC-DC12V3A power adapter | 1 |
| 3-core direct serial cable | 1 |
| DB15 adapter | 1 |
| Mounting bracket | 1 |
| Certificate of conformity | 1 |
| External signal specification | 1 |
Ⅷ Product real-shot

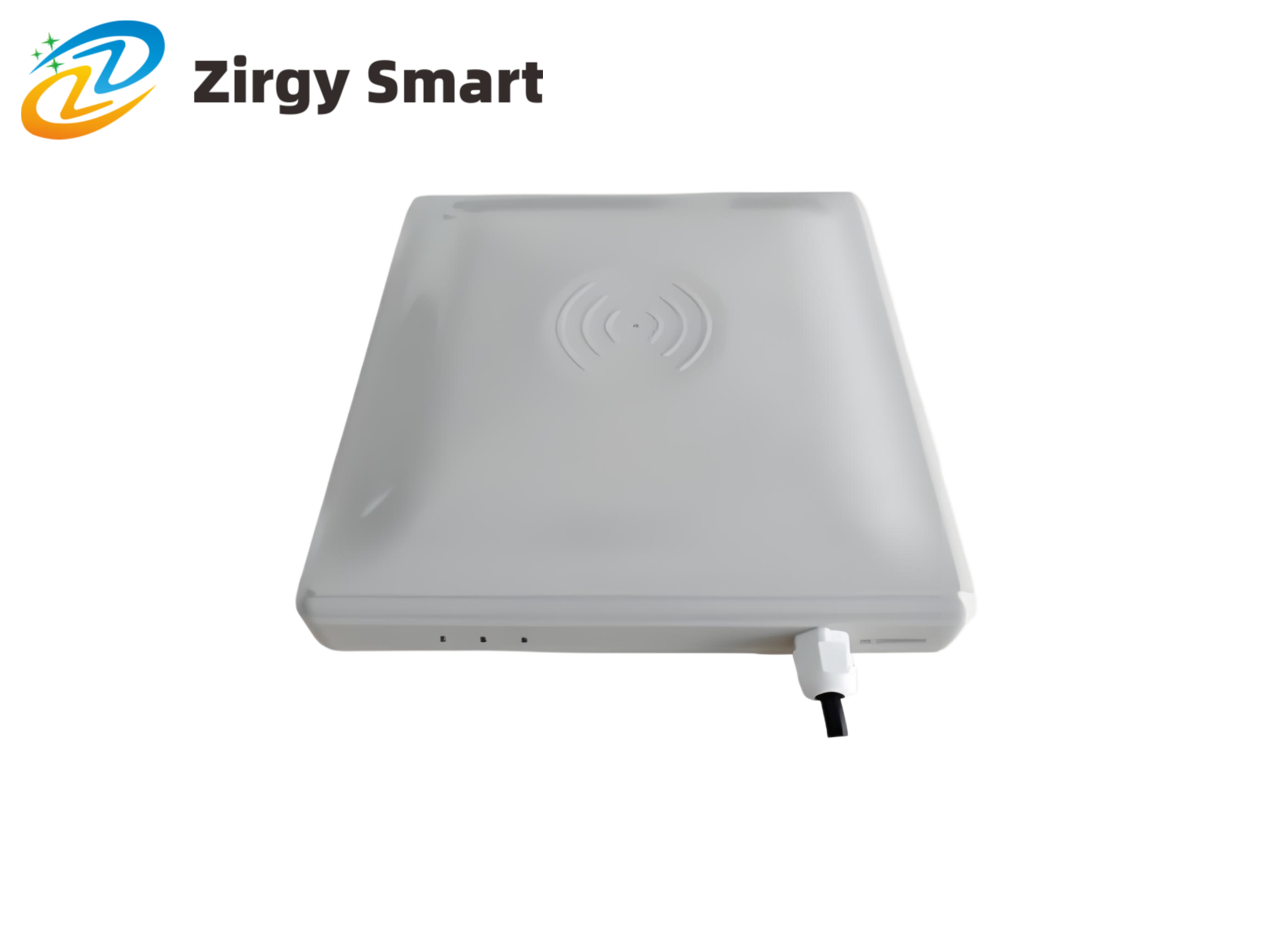

Real-shot display
