Ⅰ Product introduction
Name: Omnidirectional active base Station ZJB-52
The omnidirectional active base station ZJB-52 is an omnidirectional data reading and writing device. The shell of the device is made of aluminum alloy material and can be connected to 4 external antennas. The four external antennas can enhance the reading effect of the card and avoid blind areas. The external antenna is connected to the SMA antenna connector via a 50 ohm coaxial cable. Keep the coaxial cable length as short as possible. The protection level of the product is relatively low and can only be used indoors. Mainly applicable to parking lot management, three-dimensional garage, personnel attendance positioning system, access control system, parking lot charging system, truck scale management system, customs goods import and export security management system.
The omnidirectional active base station ZJB-52 is an omnidirectional data reading and writing device. The shell of the device is made of aluminum alloy material and can be connected to 4 external antennas. The four external antennas can enhance the reading effect of the card and avoid blind areas. The external antenna is connected to the SMA antenna connector via a 50 ohm coaxial cable. Keep the coaxial cable length as short as possible. The protection level of the product is relatively low and can only be used indoors. Mainly applicable to parking lot management, three-dimensional garage, personnel attendance positioning system, access control system, parking lot charging system, truck scale management system, customs goods import and export security management system.
Ⅱ Product main advantages
● Strong anti-interference ability, not affected by external radio waves;
● Strong ability to read labels at the same time (strong anti-collision ability);
● Built-in buffer of 2000 labels;
● High waterproof rating: IP56 (indoor use);
● Adjustable reading label distance, 0-100 meters adjustable (using software Settings);
● Multiple interfaces, easy to use;
● Support relay output;
● No external wiring, all interfaces are integrated on the device.
● Strong ability to read labels at the same time (strong anti-collision ability);
● Built-in buffer of 2000 labels;
● High waterproof rating: IP56 (indoor use);
● Adjustable reading label distance, 0-100 meters adjustable (using software Settings);
● Multiple interfaces, easy to use;
● Support relay output;
● No external wiring, all interfaces are integrated on the device.
Ⅲ Usage method
Step: Open the packing box and check the quantity according to the list;
Two steps: Prepare the computer and RS232 serial cable (USB to RS232 cable), and connect the computer to the device;
Three steps: Install the four omnidirectional antennas on the reader;
Four steps: Connect the connector to the power outlet, and then plug the DC plug into the large device;
Step 5: Observe whether the power indicator is on (indicator under A);
Six steps: Observe the equipment working status light (), if the light is shining, it indicates that the equipment is working normally;

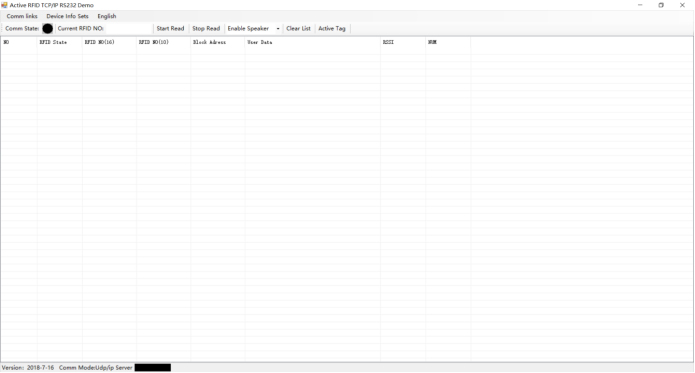

Step 7: Run the DEMO software (rfid_tcp_com_demo.exe), and the following interface is displayed:
Two steps: Prepare the computer and RS232 serial cable (USB to RS232 cable), and connect the computer to the device;
Three steps: Install the four omnidirectional antennas on the reader;
Four steps: Connect the connector to the power outlet, and then plug the DC plug into the large device;
Step 5: Observe whether the power indicator is on (indicator under A);
Six steps: Observe the equipment working status light (), if the light is shining, it indicates that the equipment is working normally;
Step 7: Run the DEMO software (rfid_tcp_com_demo.exe), and the following interface is displayed:
Ⅳ Interface instruction
● Interface definition
The communication interface uses a 6-pin RJ11 port. The signal is defined as follows:
● Instrutions of indicator light
The communication interface uses a 6-pin RJ11 port. The signal is defined as follows:
| Pin numbers | Signal names | Direction | Instructions |
| 1 | GND | ||
| 2 | GND | ||
| 3 | System occupancy | Cannot connect to other devices | |
| 4 | RS_TX | O | RS232 transmission |
| 5 | System occupancy | Cannot connect to other devices | |
| 6 | RS_RX | I | RS232 reception |
● Instrutions of indicator light
| Light A (bottom) | Power indicator light |
| Light B (middle) | Working light |
| Light C (top) | Receive the correct label information light |
Ⅴ Product packing list
| Names | Quantity |
| ZJB-52 outdoor omnidirectional active base station | 1 |
| AC-DC9V1A power adapter | 1 |
| 6-core RJ11 to serial cable | 1 |
| Certificate of conformity | 1 |
Ⅵ Routine maintenance
Ⅶ Product real-shot
The device is a low-power device and is not easily damaged under normal use. From the user feedback statistics, easy failure is summarized as follows:
● Power adapter;
● Communication is abnormal.
1 All indicators are off
The reasons for this are as follows:
● No power supply;
● Device indicator light is broken.
2 Normal working light is not shining (steady on)
The reasons for this are as follows:
● The equipment does not enter the normal working state;
● Device indicator light is broken.
3 The RS232 communication is abnormal
The reasons for this are as follows:
● The serial cable is not plugged in;
● The COM port opened by the software is inconsistent with the actual connected COM port;
● The baud rate of the COM port opened by the software is inconsistent with that set by the actual device;
● Equipment internal failure.

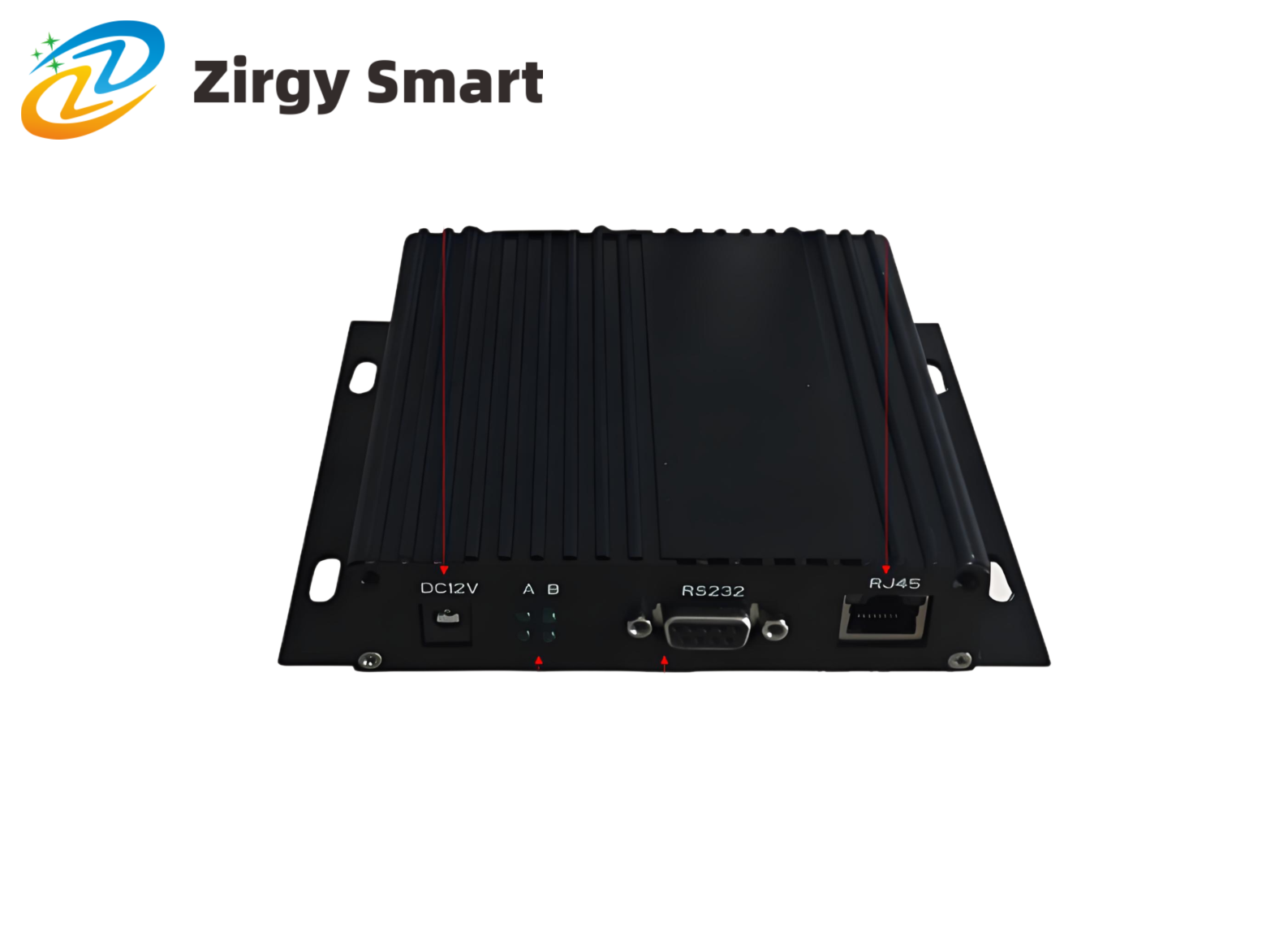

Front panel interface
Real-shot display
