Ⅰ Product introduction
Name: indoor omnidirectional active base station ZJB-51
The indoor omnidirectional active base Station ZJB-51 is a general-purpose device with built-in 3dbiPCB antenna, which is only installed indoors. There are three LED indicators below the device to indicate the working status of the device, and the built-in buzzer prompts the label status by sounding, and the sound time can be set by the software or the sound can be turned off.
Indoor omnidirectional active base station ZJB-51 includes: TCP/IP network port, RS232, RS485, Wiegand. The device has a built-in relay that closes when the card is read. The device mainly configures parameters through the RS232 interface, which must be configured through the configuration software before using the product. The device supports setting common parameters by using DIP switches. Mainly used in: personnel access attendance location, tunnel construction personnel attendance location, mine attendance location, operation vehicle near personnel safety alarm system, asset management system, fixed asset management system.
The indoor omnidirectional active base Station ZJB-51 is a general-purpose device with built-in 3dbiPCB antenna, which is only installed indoors. There are three LED indicators below the device to indicate the working status of the device, and the built-in buzzer prompts the label status by sounding, and the sound time can be set by the software or the sound can be turned off.
Indoor omnidirectional active base station ZJB-51 includes: TCP/IP network port, RS232, RS485, Wiegand. The device has a built-in relay that closes when the card is read. The device mainly configures parameters through the RS232 interface, which must be configured through the configuration software before using the product. The device supports setting common parameters by using DIP switches. Mainly used in: personnel access attendance location, tunnel construction personnel attendance location, mine attendance location, operation vehicle near personnel safety alarm system, asset management system, fixed asset management system.
Ⅱ Product main advantage
● Strong anti-interference ability, not affected by external radio waves;
● Strong ability to read labels at the same time (strong anti-collision ability);
● Built-in buffer of 2000 labels;
● High waterproof rating: IP56 (indoor use);
● Adjustable reading label distance, 0-50 meters adjustable (using software Settings);
● Multiple interfaces, easy to use;
● Support relay output;
● No external wiring, all interfaces are integrated on the device.
● Strong ability to read labels at the same time (strong anti-collision ability);
● Built-in buffer of 2000 labels;
● High waterproof rating: IP56 (indoor use);
● Adjustable reading label distance, 0-50 meters adjustable (using software Settings);
● Multiple interfaces, easy to use;
● Support relay output;
● No external wiring, all interfaces are integrated on the device.
Ⅲ Main function
● Equipment working status indicator (3 LED indicators, built-in buzzer);
● The read label is saved to the buffer, with a buffer capacity of 2000 labels;
● After reading the label, it can be transmitted to the host computer through TCP/IP network port, RS232, RS485, Wiegand 26/34/66;
● Communication mode has active transmission and passive transmission;
● RS232, RS485 communication rate can be set;
● The reading distance of the label can be set (0-31 files);
● The interval for reading the same label can be set;
● The speed of tag active upload can be set;
● External trigger start card reading;
● Support relay output. When the label is read, the relay closes, and the closing time can be set by software;
● The external input signal can be used to turn off the relay;
● Support dip switch setting common parameters;
● Can read the factory information of the device.
Ⅳ Basic information table
| Model: ZJB-51 |
| Product type: 2.4G active RFID reader |
| Operating frequency: 2.4GHz |
| Read labels at the same time: more than 2000 |
| Material: ABS plastic |
| Product colour: Gray |
| Antenna: Built-in 3dbi antenna |
| External connection: DC power jack, DB9-M, RJ45, 12P connection terminal, dip switch |
| Communication interface: TCP/IP network port, RS232, RS485, Wiegand 26, Wiegand 34, Wiegand 66 |
| Status indicator: 3 LED lights at the bottom, built-in buzzer |
| Relay output: When the card is read, the relay closes, and the closing time can be set by software |
| Trigger card reading signal: An external card reading signal is triggered. After triggering, the card reading delay can be set by the software |
| Status input signal: A status information, can also be used to close the relay |
| Power supply: DC12-36V |
| Rated power: 1W |
| Operating temperature (℃) : -25℃ ~ 75℃ |
| Storage temperature (℃): -40℃ ~ 85℃ |
| Working humidity: less than 95% |
| Equipment size: 168mm×50mm |
| Equipment weight: 1kg |
| Packing size: 250mm×250mm×80mm |
| Packing quantity: 1 |
| Packing weight: 1.5kg |
Ⅴ Main technical parameters
● Operating frequency: 2.4GHz-2.5GHz;
● Working mode: active and passive combination;
● Structure: The outer cover is high temperature and low temperature resistant ABS plastic;
● Antenna parameters: built-in 3dbi antenna;
● Communication interface mode: TCP/IP network port, RS232, RS485, Wiegand 26, Wiegand 34, Wiegand 66;
● Communication mode: active mode (the reader reads the label and sends it to the computer);
● There is a buffer capacity of 2000 labels inside the device;
● RS232, RS485 communication rate can be set by users;
● Card reading distance: up to 50 meters;
● Recognition accuracy: 99.999999%;
● Provide demo software, API functions, etc.
● Various data formats can be output according to user requirements;
● Working voltage: DC12-36V;
● Rated power: 1W;
● Working temperature: -25℃ ~ 75℃;
● Storage temperature (℃): -40℃ ~ 85℃;
● Working humidity: less than 95%;
● Equipment size: 168mm×50mm;
● Equipment weight: 1.0kg;
● Packing size: 250mm×250mm×80mm;
● Packing quantity: 1;
● Packing weight: 1.5kg.
Ⅵ Product packing list
| Name | Quantity |
| Indoor omnidirectional active base station ZJB-51 | 1 |
| AC-DC12V3A power adapter | 1 |
| 3-core direct serial cable | 1 |
| Mounting bracket | 1 |
| Certificate of conformity | 1 |
| External signal specification | 1 |

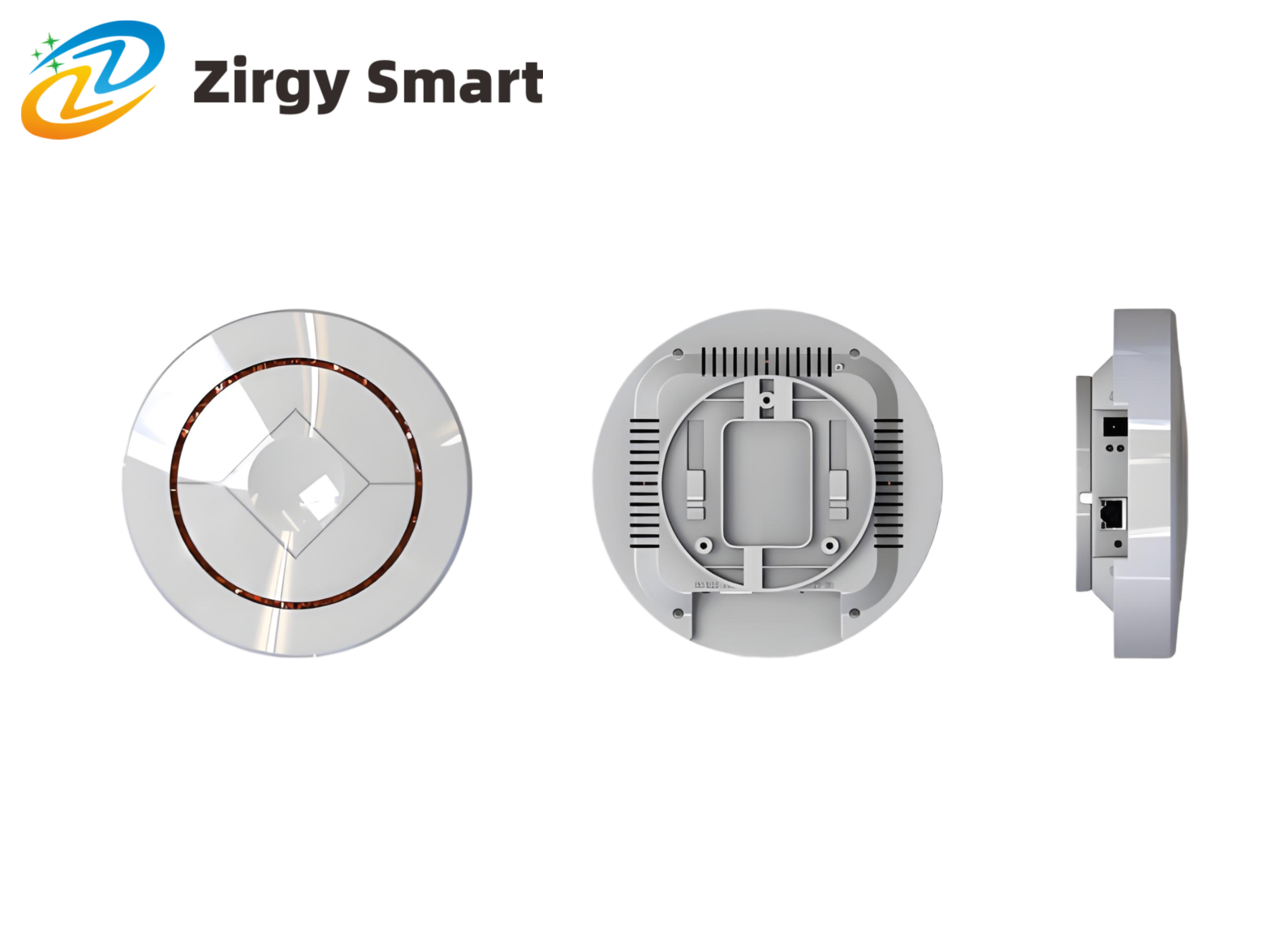

Ⅶ Product real-shot
Real-shot display
