Ⅰ Product introduction
Name: Asset management active directional base Station ZJB-50
The Asset Management Active directional Base Station ZJB-50 is a general-purpose device with a built-in 8dbiPCB antenna, which can be installed outdoors and is IP65 waterproof. There are three LED indicators below the device to indicate the working status of the device, and the built-in buzzer prompts the reading of the label status by sounding, and the sound time can be set by the software or the sound can be turned off.
The Asset Management active directional base station ZJB-50 is drawn through a 15-core cable as a communication connection or power supply to other equipment. Its communication interface includes: RS232, RS485, Wiegand. One end of the 15-wire is a 15-core head. In actual use, the 15-core head can be cut off and connected with other devices directly through the cable; Or add a DB15 head. In addition, in order to facilitate testing, the device is configured with a special expansion board for testing, so it is unnecessary to use the special expansion board in actual use. The device mainly configures parameters through the RS232 interface, which must be configured through the configuration software before using the product. It is mainly used in personnel attendance positioning, tunnel construction personnel attendance positioning, mine attendance positioning, operation vehicle near personnel safety alarm system, asset management system, fixed asset management system.
The Asset Management Active directional Base Station ZJB-50 is a general-purpose device with a built-in 8dbiPCB antenna, which can be installed outdoors and is IP65 waterproof. There are three LED indicators below the device to indicate the working status of the device, and the built-in buzzer prompts the reading of the label status by sounding, and the sound time can be set by the software or the sound can be turned off.
The Asset Management active directional base station ZJB-50 is drawn through a 15-core cable as a communication connection or power supply to other equipment. Its communication interface includes: RS232, RS485, Wiegand. One end of the 15-wire is a 15-core head. In actual use, the 15-core head can be cut off and connected with other devices directly through the cable; Or add a DB15 head. In addition, in order to facilitate testing, the device is configured with a special expansion board for testing, so it is unnecessary to use the special expansion board in actual use. The device mainly configures parameters through the RS232 interface, which must be configured through the configuration software before using the product. It is mainly used in personnel attendance positioning, tunnel construction personnel attendance positioning, mine attendance positioning, operation vehicle near personnel safety alarm system, asset management system, fixed asset management system.
Ⅱ Product main advantage
● Strong anti-interference ability, not affected by external radio waves;
● Strong ability to read labels at the same time (strong anti-collision ability);
● Built-in buffer of 2000 labels;
● Support outdoor installation;
● IP level: IP65;
● Adjustable reading label distance, 0-150 m adjustable (using software Settings);
● Simple interface, easy to use.
● Strong ability to read labels at the same time (strong anti-collision ability);
● Built-in buffer of 2000 labels;
● Support outdoor installation;
● IP level: IP65;
● Adjustable reading label distance, 0-150 m adjustable (using software Settings);
● Simple interface, easy to use.
Ⅲ Main function
● Equipment working status indicator (3 LED indicators, buzzer);
● The read label is saved to the buffer, with a buffer capacity of 2000 labels;
● After reading the label, it can be transmitted to the host computer through RS232, RS485, Wiegand 26/34/66;
● Communication mode has active transmission and passive transmission;
● RS232, RS485 communication rate can be set;
● The reading distance of the label can be set (0-31 files);
● The interval for reading the same label can be set;
● The speed of tag active upload can be set;
● External trigger start card reading;
● Can read the factory information of the device.
● The read label is saved to the buffer, with a buffer capacity of 2000 labels;
● After reading the label, it can be transmitted to the host computer through RS232, RS485, Wiegand 26/34/66;
● Communication mode has active transmission and passive transmission;
● RS232, RS485 communication rate can be set;
● The reading distance of the label can be set (0-31 files);
● The interval for reading the same label can be set;
● The speed of tag active upload can be set;
● External trigger start card reading;
● Can read the factory information of the device.
Ⅳ Basic information table
| 型号：ZJB-50 |
| Product type: 2.4G active RFID reader |
| Operating frequency: 2.4GHz |
| Read labels at the same time: more than 2000 |
| Material: ABS plastic |
| Product color: Gray |
| Antenna: Built-in 8dbi antenna |
| External connection: 15 core cable |
| Communication interface: RS232, RS485, Wiegand 26, Wiegand 34, Wiegand 66 |
| Status indicator: 3 LED light indicator, built-in buzzer |
| Power supply: DC12-36V |
| Rated power: 1W |
| Operating temperature (℃) : -25℃ ~ 75℃ |
| Storage temperature (℃) : -40℃ ~ 85℃ |
| Working humidity: less than 95% |
| Equipment size: 250mm x 250mm x 58mm |
| Equipment weight: 1.0kg |
| Packing size: 297mm×310mm×106mm |
| Packing quantity: 1 |
| Packing weight: 1.5kg |
Ⅴ Main technical parameters
● Operating frequency: 2.4GHz-2.5GHz;
● Working mode: active and passive combination;
● Structure: The outer cover is high temperature and low temperature resistant ABS plastic;
● Antenna parameters: built-in 8dbi antenna;
● Communication interface: RS232, RS485, Wiegand;
● Communication mode: active mode (the reader reads the label and sends it to the computer);
● There is a buffer capacity of 2000 labels inside the device;
● RS232, RS485 communication rate can be set by users;
● System identification distance: up to 150 meters;
● Recognition accuracy: 99.999999%;
● Provide demo software, API functions, etc.
● Various data formats can be output according to user requirements;
● Working voltage: DC12-36V;
● Rated power: 5W;
● Working temperature: -25℃ ~ 75℃;
● Storage temperature (℃) : -40℃ ~ 85℃;
● Working humidity: less than 95%.
Ⅵ Product packing list
| Names | Quantity |
| Asset management active directional base station ZJB-50 | 1 |
| Integrated device switching board | 1 |
| AC-DC12V3A power adapter | 1 |
| 3-core direct serial cable | 1 |
| DB15 adapter | 1 |
| Mounting bracket | 1 |
| Certificate of conformity | 1 |
| External signal specification | 1 |
Ⅶ Product real-shot

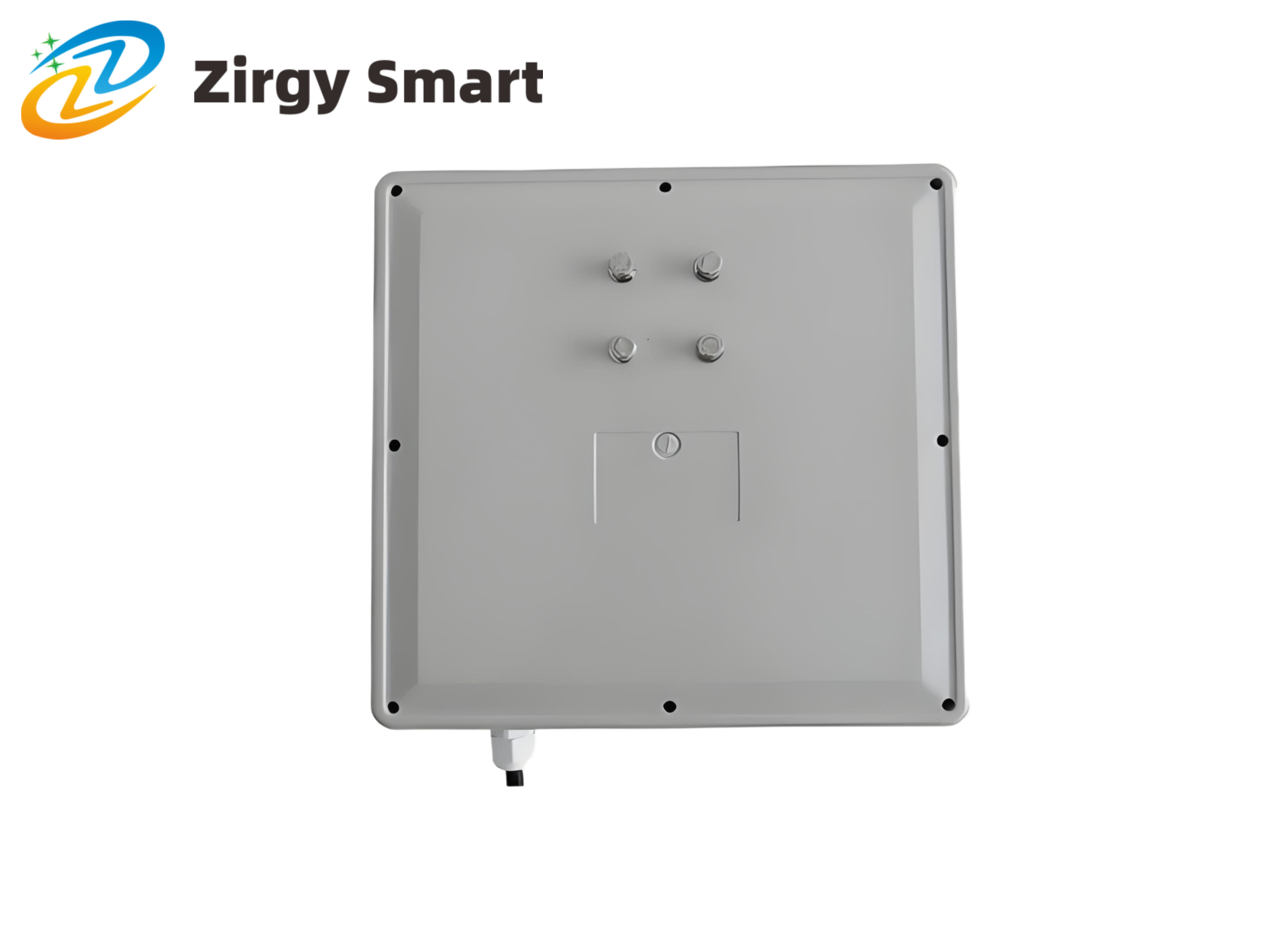

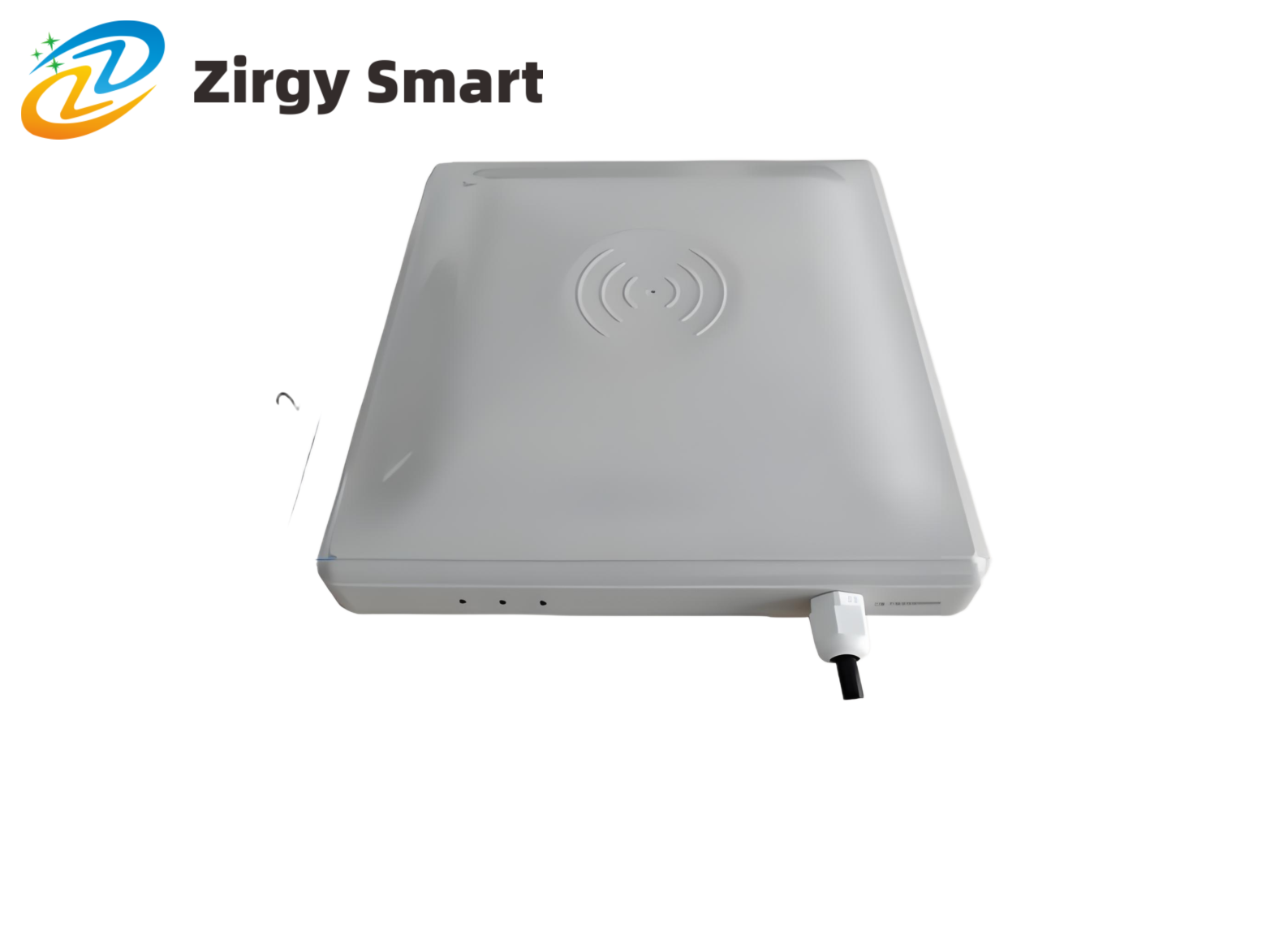

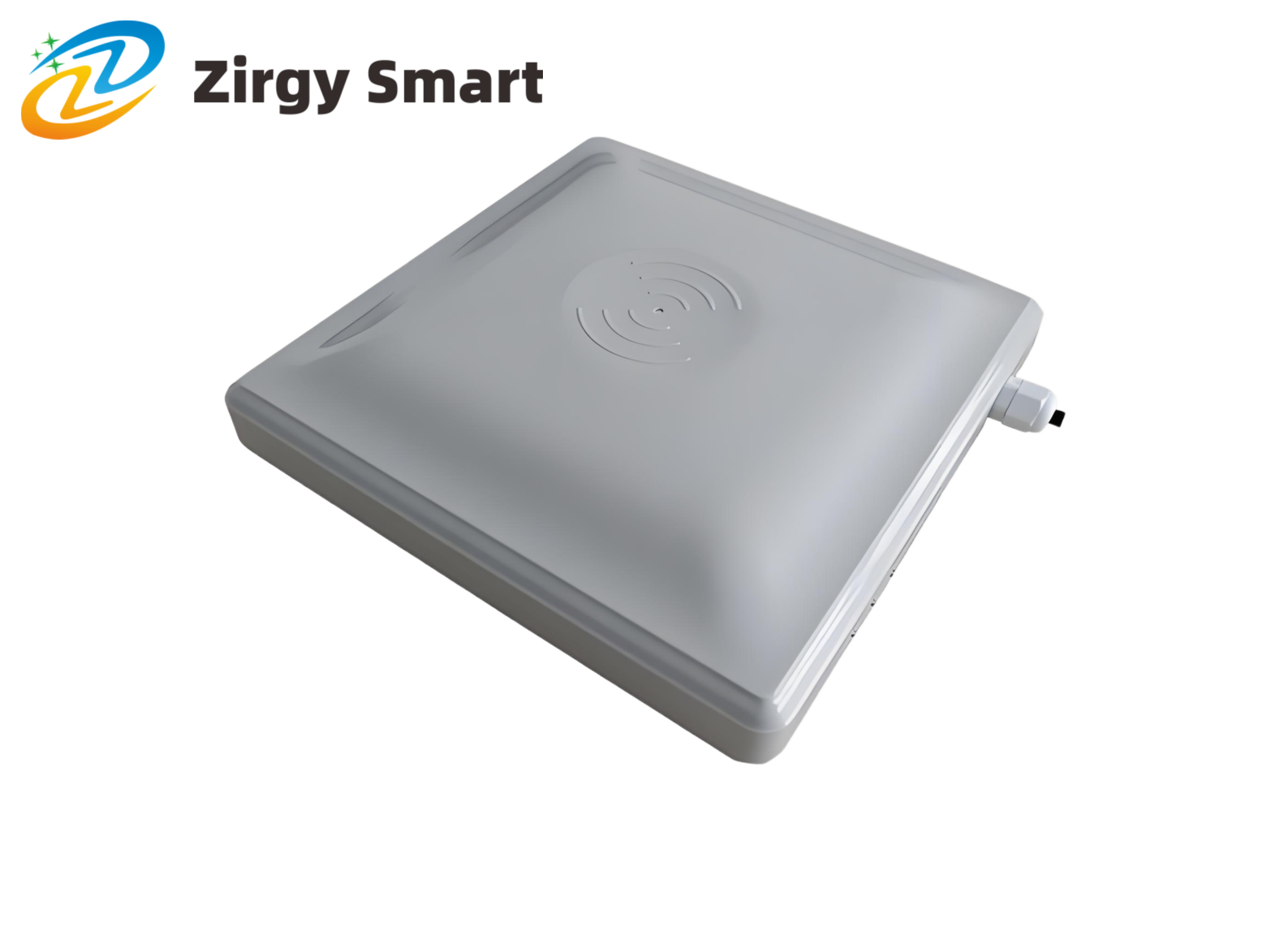

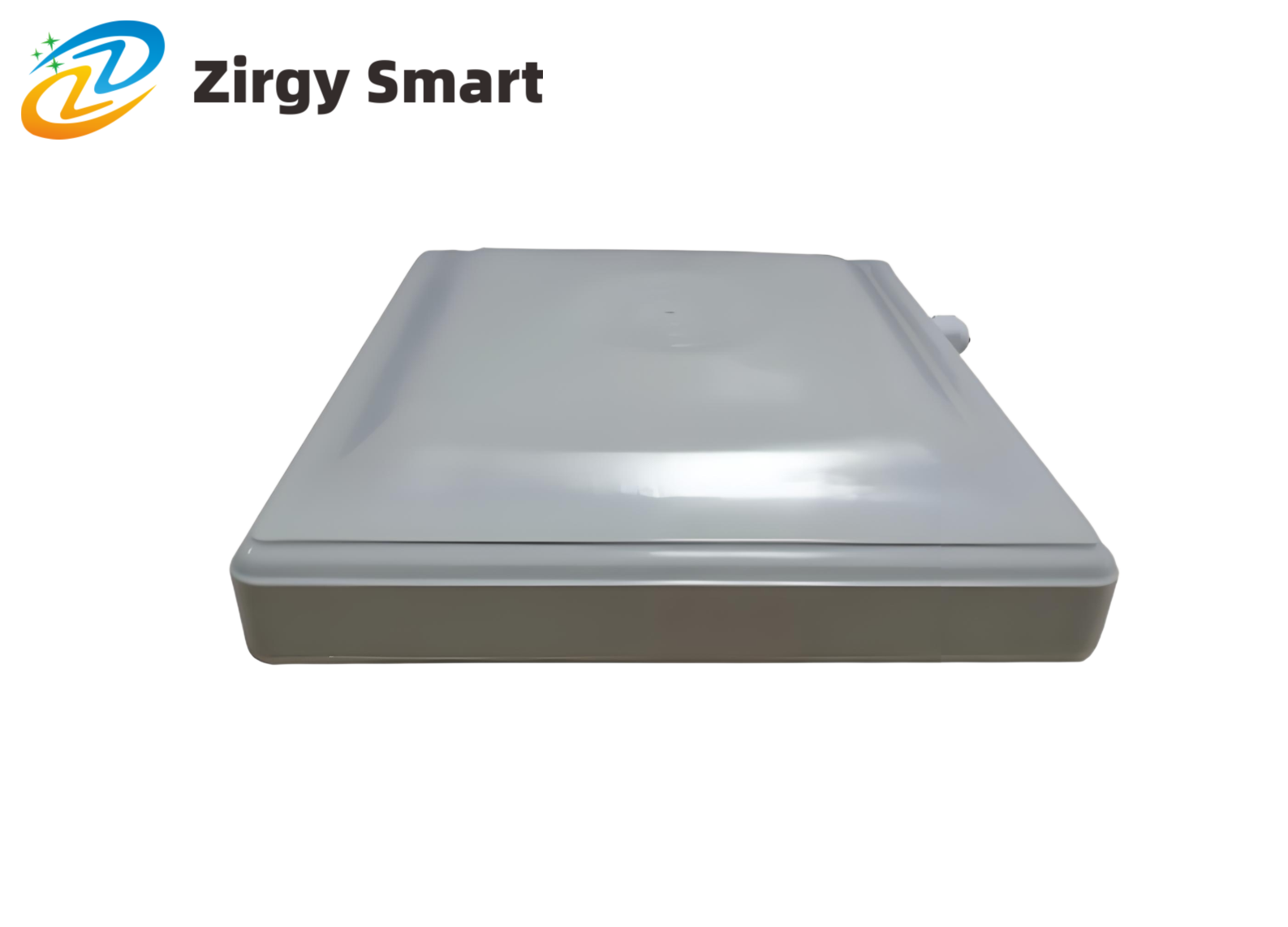

Dimension diagram

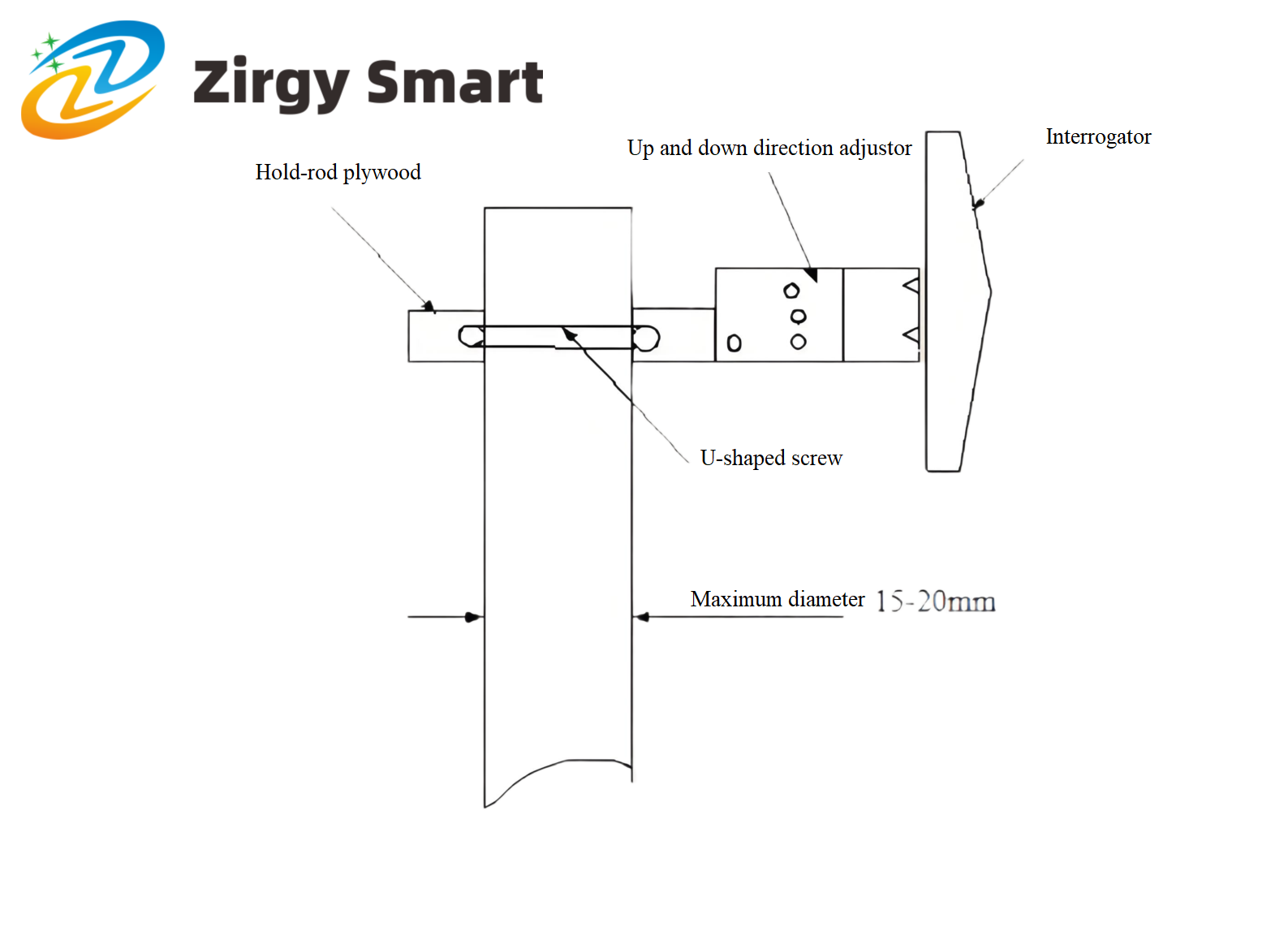

Mounting and fixing drawing
