Ⅰ Technical parameters
Name: indoor omnidirectional base station ZJB-16
● Product features
Indoor omnidirectional base station ZJB-16 has the characteristics of fast network data transmission speed, low power consumption, high performance, but also has 4 network switch interfaces, support P0E network cable power supply, used in the entire system, a single power supply can be used to power multiple P0E equipment, easy system integration. It is often used in items storage monitoring, smart campus, prison management, nursing home personnel positioning and other application programs.
· Reading distance: 0-40 meters;
· Antenna mode: 2-way omnidirectional antenna;
· Switch interface: 4 P0E switch interface (adaptive 10M/100Mbps);
· Anti-conflict: Using ARM technology, with 200 cards read at the same time.
● Specifications
| Operating voltage | Operating current | Operating frequency | 2.4G reception distance | Reception sensitivity | |
| DC12V - DC24V or network P0E power supply | ≤350mA | 2.45 GHz | 0〜40 meters | -90dBm | |
| Conflict prevention capability | Antenna orientation Angle | Communication mode | Communication interface | Input/output interface | Shell material |
| 200PCS | <360 degrees | TCP/IP | BJ45 | Four POE switch ports | Die-cast aluminum |
Ⅱ Product display

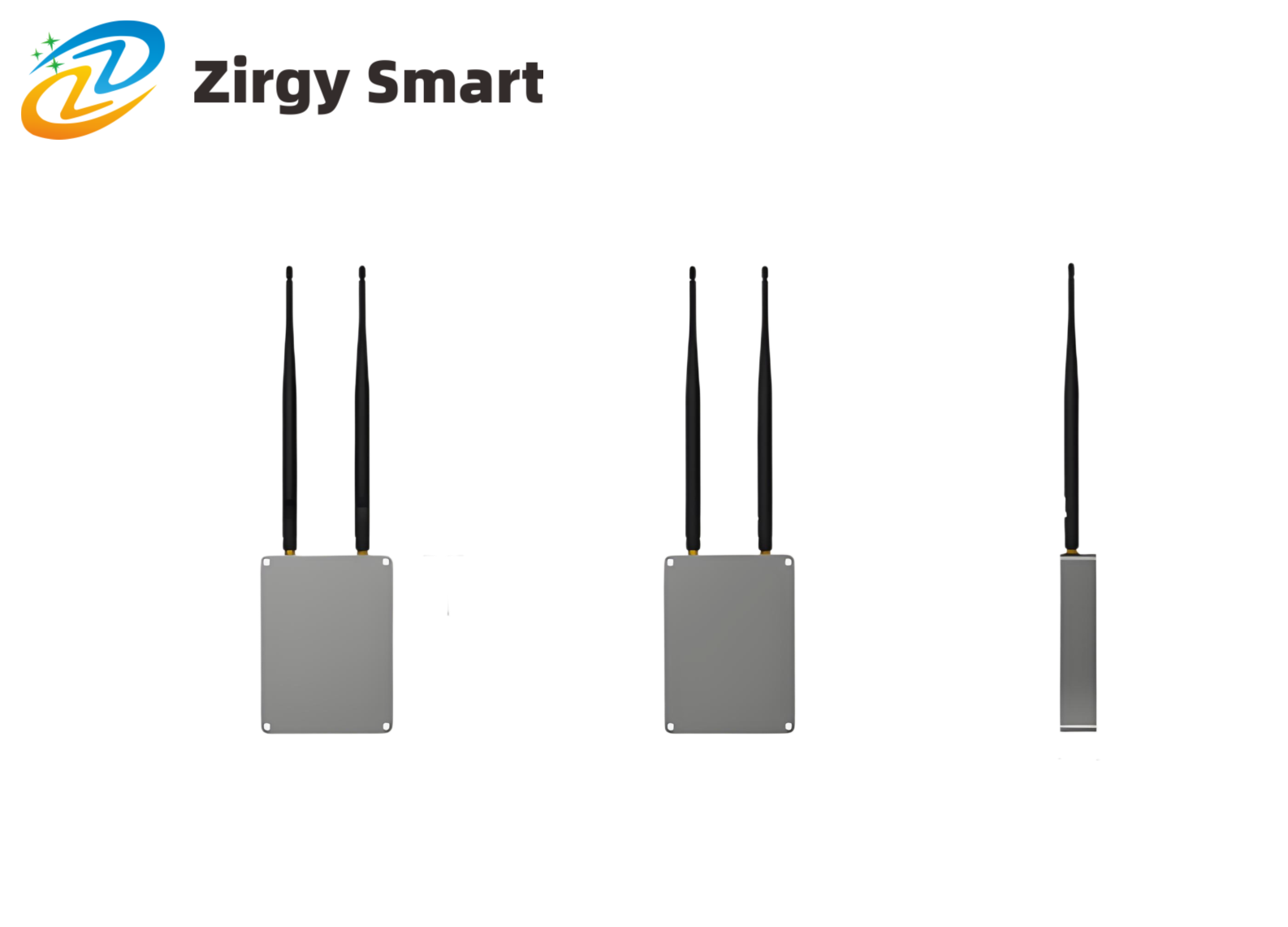

Real-shot display
