Ⅰ Technical parameters


Name: IC desktop card sender ZJB-04

● Product features

IC desktop card issuer ZJB-04 is a stable, practical, high-performance 13.56M frequency card reader, which is widely used in Internet cafes, member check-in, access control, property management, identity authentication and other places.
· Reading card type: IC card (M1 card);
· Reading distance: > 13cm (long distance thick card up to 20cm);
· Data format: Convert the last four bytes of the card serial number into ten decimal form, press enter to end (other formats please contact customer service to negotiate);
· USB interface drive free: use USB power supply, support plug and play, in the use of the process can be plugged in, no additional power supply, the user does not need to load any driver.

● Specifications

Operating frequency Card reading type Card reading distance Card reading time Card reading rate
13.56MHz MF\S50\S70 and other 14443A protocol labels 0 ~ 80 mm 〈100MS 0.2S
Card reading time gap Communication interface Operating voltage Operating current Supported operating system
0.5S USB 5V 100mA WinXP\Win7\Win10\LIUNX\Vista\Android



Ⅱ Product display


Real-shot display

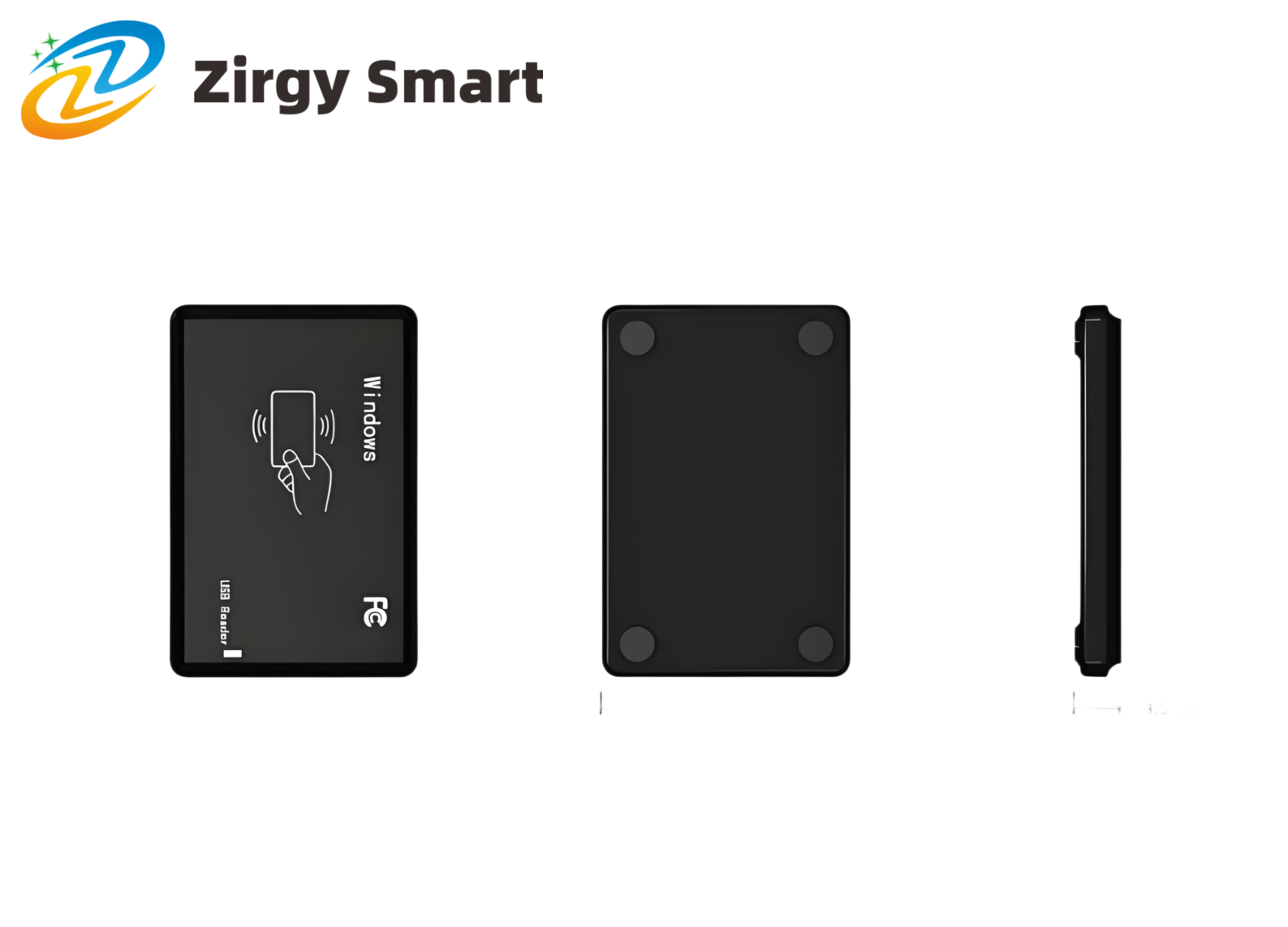

IC desktop card distributor ZJB-04 real shot display figure 1

IC desktop card distributor ZJB-04 real shot display figure 2
