Ⅰ Technical parameters
● Characteristics of the product
The outdoor directional base station ZJB-02 adopts the 2.4GHz civil band wireless communication technology and features a design with high sensitivity and low power consumption. It has the capabilities of lightning protection, water resistance, and anti-interference. It is commonly used in application solutions such as RFID vehicle management systems, access control systems, personnel positioning systems, goods tracking systems, prisons, schools, etc.
・ Directional Identification: It has the function of directional card reading, and the directional angle is less than 180 degrees.
・ Adjustable Card Reading Distance: It is internally integrated with a microwave digital attenuator. The card reading distance can be controlled by adjusting the rotary dial code or through software, which can meet the requirements for different card reading distances in practical applications.
・ Anti-collision Capability: By using an ARM fast processor and composite receiving frequency division technology, the card reading performance is improved. It has the function of reading 1000 cards simultaneously.
● Specification parameters
| Operating voltage | Operating current | Operating frequency | Receiving sensitivity | 2.4G receiving distance | |
| DC9V/DC12V or Internet POE powered | ≤500mA | 2.45GHz | -90dBm | 0m~100m (radius、adjustable) | |
| Anti-collision capability | Antenna directional degree | Waterproof level | Shell material | Communication interface | The communication interface can be customized. |
| 1000PCS | <180 degrees | IP67 | Die-cast aluminum | TCP/IP | WG26, WG34 and RS485 optional |
ⅡProduct display

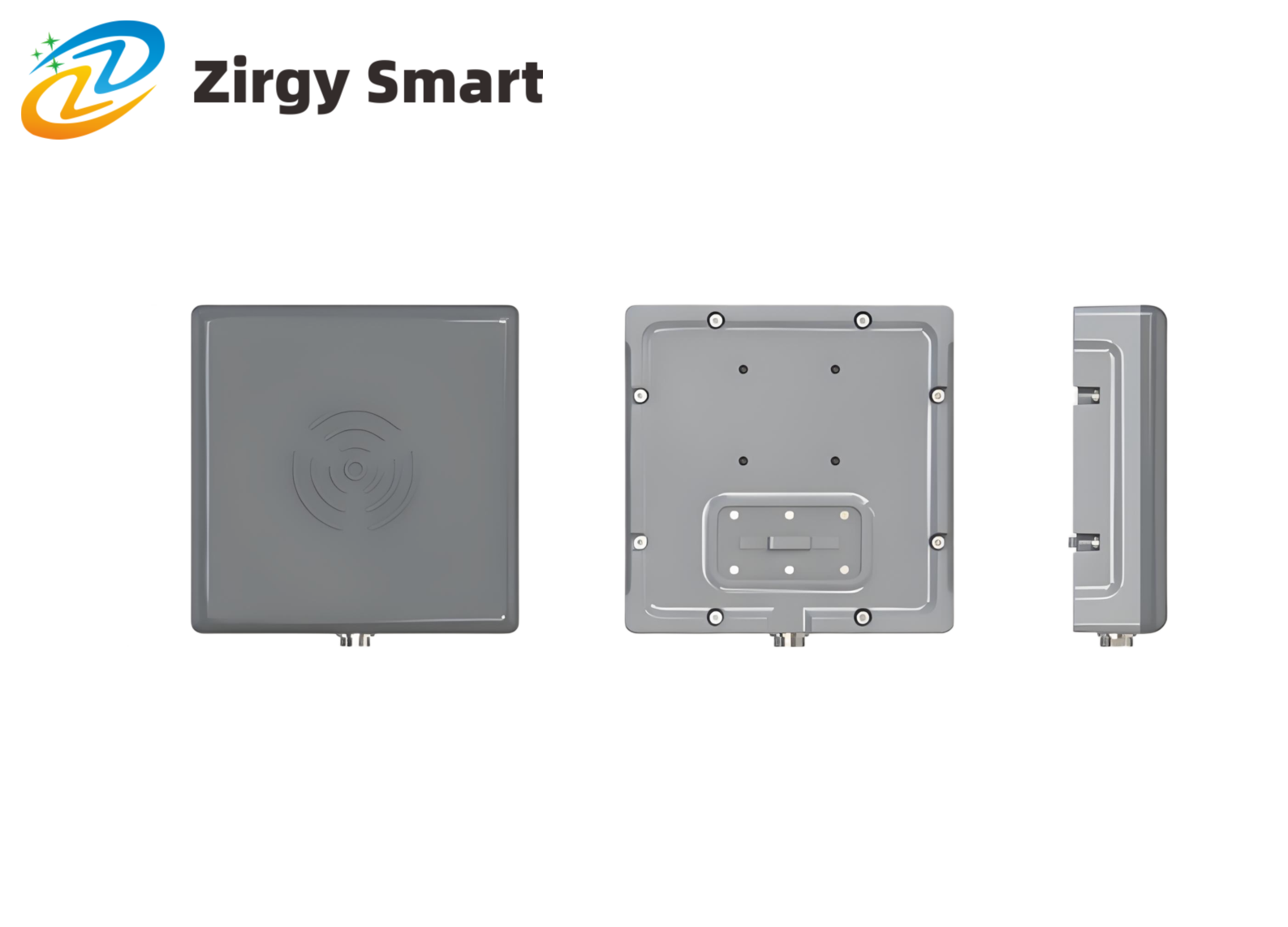

Real-shot display
